Mark Schmidt (2006)
This is a Matlab function implementing maximum a posteriori (MAP) estimation of
the precision matrix in a generative Gaussian Graphical Model (GGM), where a
Laplace prior (ie. L1-regularizer of the negative log-likelihood) has been
placed on the values of the precision matrix (also known as the `Graphical Lasso').
Formally, for a given empirical covariance matrix S and a regularizer
strength v, we seek to minimize
the following expression in terms of the matrix X:
log |X| - < S,X > - v||X||_1
In the above |X| denotes the determinant of X, < S,X >
is the matrix inner product of S and X, and ||X||_1 is the
sum of the absolute values of the elements of X (NOT the matrix L1-norm).
To form a proper
Precision/Covariance, this optimization must be performed subject to symmetry
of the matrix and a positive-definite constraint.
This constrained optimization is solved
using the method of (Banerjee, El Ghaoui, d'Aspremont, and Natsoulis. "Convex
optimization tehcniques for fitting sparse Gaussian graphical models", ICML
2006), where Block Coordinate Descent is applied to the convex dual, and each
column of the matrix is optimized in turn as a bound-constrained Quadratic Program.
There are 2 avialable options for solving the Quadratic Programs: If
the Quadratic Programming
in C (QPC) mex files are
available, then the qpas mex file from this software will be used.
Otherwise, the method formulates the block update as a Lasso optimization
problem and solves the Lasso optimization using the `Shooting' algorithm
(Knight and Fu, "Penalized regressions: the bridge vs the lasso", JCGS 98), as in
This code was used in the paper Modeling changing dependency structure in
multivariate time series by Xiang Xuan and Kevin Murphy (ICML, 2007).
The function has the following interface:
X = L1precisionBCD(S,v);
Running 'example_L1precision' will apply this function to a word co-occurrence
data set with v set to 1, and then plot the resulting graph structure.
To run this demo, you will need to download the processed version of the 20
data set, available here
from Sam Roweis' Data for
Matlab Hackers web site. Unfortunately, the graph plotting only works

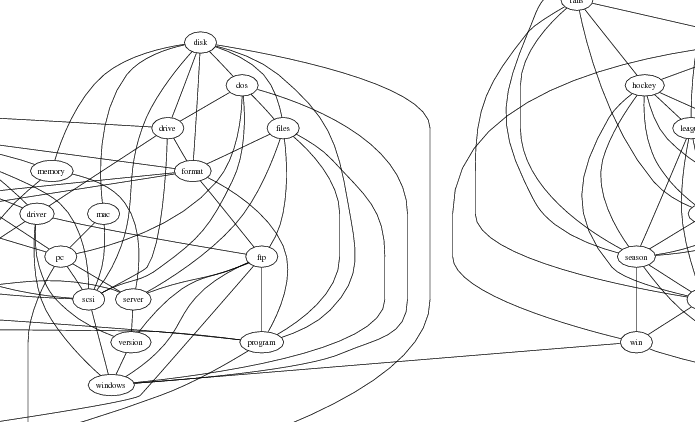

under Windows. Below, a portion of the resulting graph is shown:
The full graph can be viewed as a PDF here.
The complete set of .m files are available here.
The QPC software is available here.
If you use L1precision in a publication, please cite the work using the following information:
- M. Schmidt. L1precision: Matlab code for MAP estimation of Gaussian Graphical Model Precision with L1-regularizer. http://www.cs.ubc.ca/~schmidtm/Software/L1precision.html, 2006.
Other Optimization Strategies
Since estimating Gaussian graphical models with L1-regularization was originally proposed, a variety of alternatives to block coordinate
descent have been proposed for solving the optimization problem. In some cases
these can be much more efficient. A variety of
alternative optimization strategies are available via
and minConf codes (for solving the primal and dual
The Examples of using L1General page
shows explicitly how to use the L1General code to solve this (graphical LASSO) optimization problems.
As an alternative to L1-regularization, group L1-regularization can be used to
encourage sparsity in the blocks of the precision matrix between pre-specified
'types' of variables. This approach was originally proposed in (Duchi, Gould, and Koller.
"Projected Subgradient Methods for Learning Sparse Gaussians", UAI 2008).
This optimization problem can be solved using the SPG or PQN
methods present in the minConf package.
The Examples of using minConf_PQN shows how
to do this explicitly.
