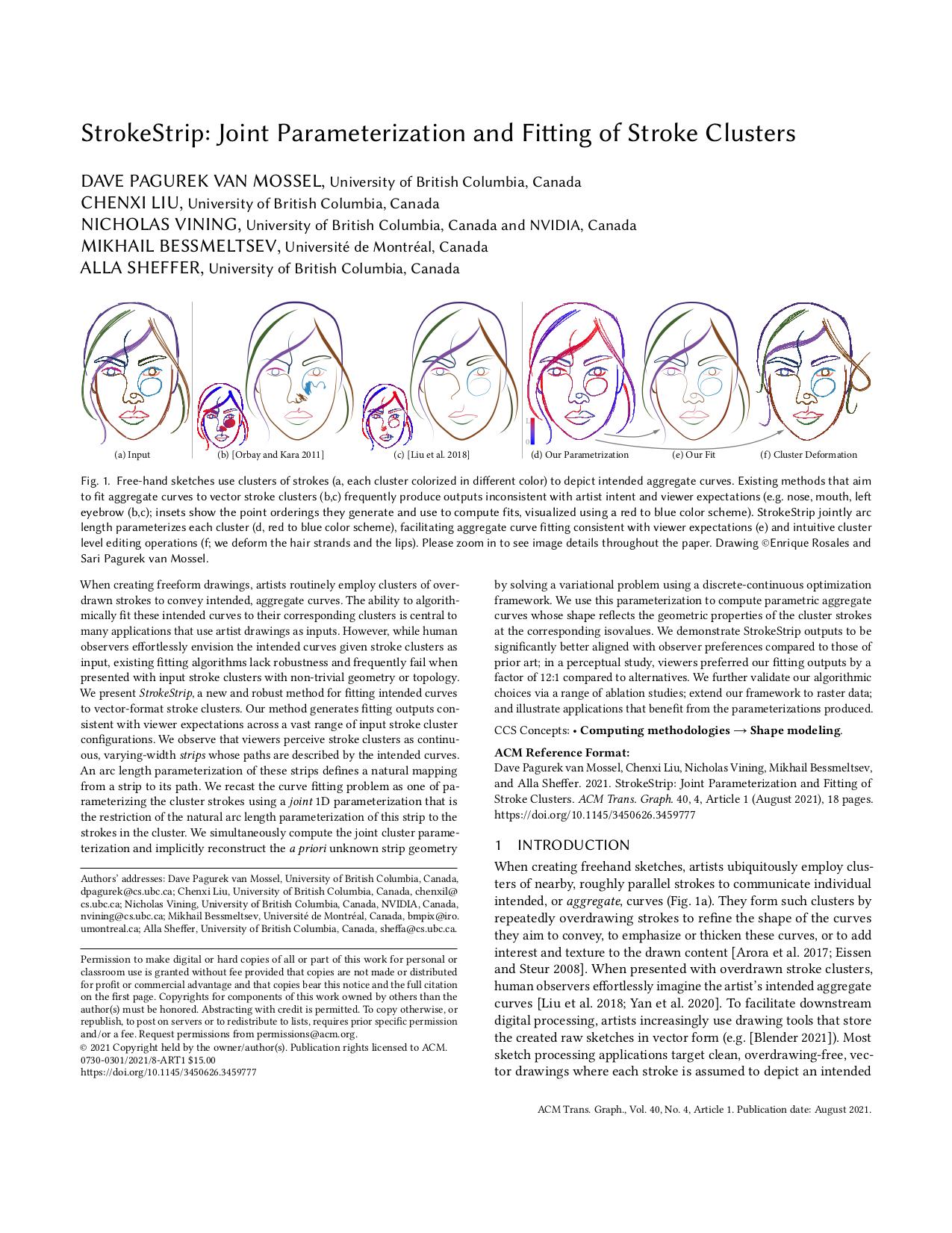

StrokeStrip: Joint Parameterization and Fitting of Stroke Clusters

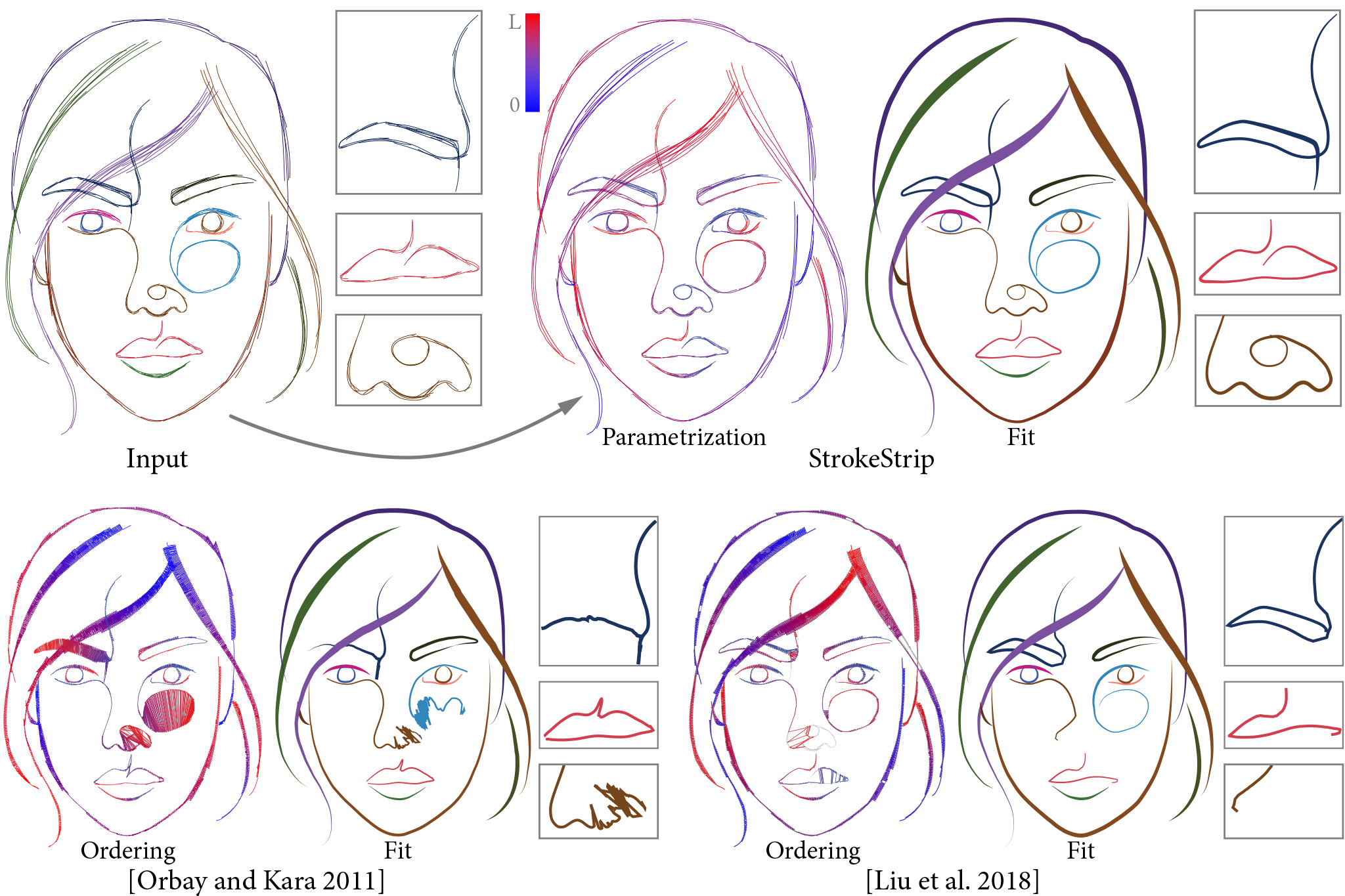

When creating freeform drawings, artists routinely employ clusters of overdrawn strokes to convey intended, aggregate curves. The ability to algorithmically fit these intended curves to their corresponding clusters is central to many applications that use artist drawings as inputs. However, while human observers effortlessly envision the intended curves given stroke clusters as input, existing fitting algorithms lack robustness and frequently fail when presented with input stroke clusters with non-trivial geometry or topology. We present StrokeStrip, a new and robust method for fitting intended curves to vector-format stroke clusters. Our method generates fitting outputs consistent with viewer expectations across a vast range of input stroke cluster configurations. We observe that viewers perceive stroke clusters as continuous, varying-width strips whose paths are described by the intended curves. An arc length parameterization of these strips defines a natural mapping from a strip to its path. We recast the curve fitting problem as one of parameterizing the cluster strokes using a joint 1D parameterization that is the restriction of the natural arc length parameterization of this strip to the strokes in the cluster. We simultaneously compute the joint cluster parameterization and implicitly reconstruct the a priori unknown strip geometry by solving a variational problem using a discrete-continuous optimization framework. We use this parameterization to compute parametric aggregate curves whose shape reflects the geometric properties of the cluster strokes at the corresponding isovalues. We demonstrate StrokeStrip outputs to be significantly better aligned with observer preferences compared to those of prior art; in a perceptual study viewers preferred our fitting outputs by a factor of 12:1 compared to alternatives. We further validate our algorithmic choices via a range of ablation studies; extend our framework to raster data; and illustrate applications that benefit from the parameterizations produced.







	title = {StrokeStrip: Joint Parameterization and Fitting of Stroke Clusters},
	author = {Pagurek van Mossel, Dave and Liu, Chenxi and Vining, Nicholas and Bessmeltsev, Mikhail and Sheffer, Alla},
	year = 2021,
	journal = {ACM Transactions on Graphics},
	publisher = {ACM},
	address = {New York, NY, USA},
	volume = 40,
	number = 4,
	doi = {10.1145/3450626.3459777}
