Welcome to BCLS!

Go to the source code of this file.


Functions
static int	bcls_newton_step (BCLS ls, int m, int nFree, int ix[], double damp, int itnLim, double tol, double dxFree[], double x[], double c[], double r[], int itns, double *opt)
	Compute a Newton step on the free variables.
static int	bcls_proj_search (BCLS ls, int m, int n, double x[], double dx[], double f, double g[], double aBreak[], int iBreak[], int ix[], double bl[], double bu[], double ex[], double Ad[], double Ae[], int totHits)
	Find a minimizer along the projected search direction.
static int	bcls_proj_backtrack (BCLS ls, int m, int n, double x[], double dx[], double f, double g[], double bl[], double bu[], double s[], int ix[], double As[], int nSteps)
	Simple backtracking to satisfy an Armijo condition.
void	bcls_solver (BCLS ls, int m, int n, double bNorm, double x[], double b[], double c[], double bl[], double bu[], double r[], double g[], double dx[], double dxFree[], int ix[], double aBreak[], int iBreak[], double anorm[])
	Implementation of the BCLS projected Newton/gradient search.

Detailed Description

Function Documentation

static int bcls_newton_step	(	BCLS *	ls,
		int	m,
		int	nFree,
		int	ix[],
		double	damp,
		int	itnLim,
		double	tol,
		double	dxFree[],
		double	x[],
		double	c[],
		double	r[],
		int *	itns,
		double *	opt
	)			`[static]`

Compute a Newton step on the free variables.

Compute a Newton step on the variables indexed by ix. The integer array ix (of length nFree) stores the indices of free variables. Thus, the kth free variable, with 0 <= k < nFree, is actually variable ix[k].

Conceptually, suppose that x and A are partitioned as

x = [ x_B x_N ] and A = [ B N ]

with x_N denoting the free variables. The objective function is given by

f(x) = 1/2 || Ax - b ||^2 + c'x + 1/2 damp^2 || x ||^2.

With respect to the free variables, the gradient and Hessian are

g_N(x) = N'(Ax - b) + cF + damp^2 xF = -N'r + cF + damp^2 xF and H_N(x) = N'N + damp^2 I,

where

r = b - Ax is the usual residual vector.
cF = c(free) is the vector of linear terms indexed by ix.
xF = x(free) is the vector of variables indexed by ix.
I = eye(nFree).

The (regularized) Newton step dx_N is then the solution of

H_N(x) dx_N = - g_N(x) (*)

or equivalently,

(N'N + damp^2 I) dx_N = N'r - cF - damp^2 xF, (**)

which is really the normal equations for the least-squares problem

|| ( N ) ( r ) || min || ( ) dx - ( ) ||. (***) || ( damp I ) ( - 1/damp cF - damp xF ) ||

Recall that I has dimension (nFree,nFree).

Inexact Newton -------------- An inexact Newton step is based on approximately satisfying (*). The optimality criteria for this step is given by

|| H_N(x) dx_N + g_N(x) || <= rTol || g_N(x) ||, (****)

where rTol < 1. This routine (bcls_newton_step) computes the RHS of (****) and passes that to the subroutines as a required optimality.

SUBROUTINES ----------- This routine uses either one of the following

CGLS (via bcls_newton_step_cgls) to solve (**)
LSQR (via bcls_newton_step_lsqr) to solve (***).

Parameters:

`[in,out]`	ls	The BCLS problem context.
`[in]`	m	Number of rows in A.
`[in]`	nFree	Number of columns in N.
`[in]`	ix	Index of free variables (cols of N).
`[in]`	damp	Sqrt of regularization parameter on x.
`[in]`	itnLim	Maximum number of minor iterations allowed.
`[in]`	tol	Required subproblem optimality.
`[out]`	dxFree	The Newton step (solution of the LS subprob).
`[in]`	x	The current iterate.
`[in]`	c	The linear term.
`[in,out]`	r	The current residual.
`[out]`	itns	No. of iterations taken by the subprob solver.
`[out]`	opt	The optimality of the subproblem solution.

Returns:

0 - Required accuracy was achieved.
1 - The iteration limit was reached.
2 - The matrix is excessively ill-conditioned.
3 - Instability seems likely.

Definition at line 407 of file bcsolver.c.

References bcls_aprod(), bcls_newton_step_cgls(), bcls_newton_step_lsqr(), BCLS_NEWTON_STEP_LSQR, BCLS_PRECON_INIT, BCLS_PRECON_TERM, BCLS_PRECON_U, BCLS_PROD_INIT, BCLS_PROD_TERM, bcls_usolve(), cblas_dcopy(), BCLS::dx, and BCLS::Usolve.

Referenced by bcls_solver().

Here is the call graph for this function:

static int bcls_proj_backtrack	(	BCLS *	ls,
		int	m,
		int	n,
		double	x[],
		double	dx[],
		double	f,
		double	g[],
		double	bl[],
		double	bu[],
		double	s[],
		int	ix[],
		double	As[],
		int *	nSteps
	)			`[static]`

Simple backtracking to satisfy an Armijo condition.

Do a simple backtracking search on the quadratic function

q(x + s) = f(x) + g(x)'s + 0.5 s' H s,

where H = A'A + damp^2 I and s = P[dx] is the projection of dx onto the box defined by bl and bu. The function value f = f(x) and the gradient g = g(x) are defined at entry and left unchanged. The step dx is reduced by a contant amount at each iteration until its projection s satisfies an Armijo condition, ie, sufficient descent is achieved when

g's + 0.5 s' H s <= mu g's,

and mu is a fixed constant.

Returns:

0 - No errors encountered.
BCLS_EXIT_UNBND - Encountered direction of infinite descent.
BCLS_EXIT_LFAIL - Linesearch failure.

Definition at line 846 of file bcsolver.c.

References BCLS::backtrack, BCLS::backtrack_limit, bcls_aprod(), BCLS_EXIT_LFAIL, BCLS_EXIT_UNBND, BCLS_PROD_A, bcls_project_step(), BCLS::BigNum, cblas_daxpy(), cblas_ddot(), BCLS::damp, BCLS::eps, BCLS::epsx, BCLS::mu, and PRINT3.

Referenced by bcls_solver().

Here is the call graph for this function:

static int bcls_proj_search	(	BCLS *	ls,
		int	m,
		int	n,
		double	x[],
		double	dx[],
		double	f,
		double	g[],
		double	aBreak[],
		int	iBreak[],
		int	ix[],
		double	bl[],
		double	bu[],
		double	ex[],
		double	Ad[],
		double	Ae[],
		int *	totHits
	)			`[static]`

Find a minimizer along the projected search direction.

Find the exact minimizer of the quadratic function

q(t) = 1/2 || A X(t) - b ||^2 + 1/2 damp^2 || X(t) ||^2,

where X(t) is the projection of (x0 + t dx) onto the box defined by bl and bu.

The arguments y and e are workspace vectors. They must be at least length n and their contents will be overwritten.

Returns:

0 - No errors encountered.
BCLS_EXIT_UNBND - Encountered direction of infinite descent.

Definition at line 491 of file bcsolver.c.

References BCLS::BigNum, BCLS::damp, BCLS::eps, BCLS::epsfixed, BCLS::epsx, PRINT6, and BCLS::print_level.

Referenced by bcls_solver().

void bcls_solver	(	BCLS *	ls,
		int	m,
		int	n,
		double *	bNorm,
		double	x[],
		double	b[],
		double	c[],
		double	bl[],
		double	bu[],
		double	r[],
		double	g[],
		double	dx[],
		double	dxFree[],
		int	ix[],
		double	aBreak[],
		int	iBreak[],
		double	anorm[]
	)

Implementation of the BCLS projected Newton/gradient search.

Parameters:

`[in,out]`	ls	The BCLS problem context.
`[in]`	m	Number of rows in A.
`[in]`	n	Number of columns in A.
`[in,out]`	bNorm	Norm of the RHS.
`[in,out]`	x	The current iterate.
`[in]`	b	The RHS vector.
`[in]`	c	The linear-term vector.
`[in]`	bl	Lower bounds on x.
`[in]`	bu	Upper bounds on x.
`[in,out]`	r	The residual vector r = b - Ax.
`[in,out]`	g	The objective gradient.
`[in,out]`	dx	The step direction in the full space.
`[in,out]`	dxFree	The step direction on the free variables.
`[in,out]`	ix	Indices of the free variables.
`[in,out]`	aBreak	A list of breakpoints for a search direction.
`[in,out]`	iBreak	The indices of the breakpoints.
`[in,out]`	anorm	Column norms of A.

Definition at line 95 of file bcsolver.c.

References bcls_aprod(), bcls_callback(), bcls_dload(), bcls_dual_inf(), BCLS_EXIT_CALLBK, BCLS_EXIT_CNVGD, BCLS_EXIT_LFAIL, BCLS_EXIT_MAJOR, BCLS_EXIT_MINOR, BCLS_EXIT_UNBND, BCLS_EXIT_UNDEF, bcls_free_vars(), bcls_mid(), bcls_newton_step(), BCLS_PROD_A, BCLS_PROD_At, bcls_proj_backtrack(), bcls_proj_search(), BCLS_PROJ_SEARCH_APPROX, BCLS_PROJ_SEARCH_EXACT, bcls_scatter(), BCLS_SOLN_OPTIM, cblas_daxpy(), cblas_dcopy(), cblas_ddot(), cblas_dnrm2(), cblas_dscal(), BCLS::damp, BCLS::itnMaj, BCLS::itnMin, BCLS::optTol, and PRINT1.

Referenced by bcls_solve_prob().

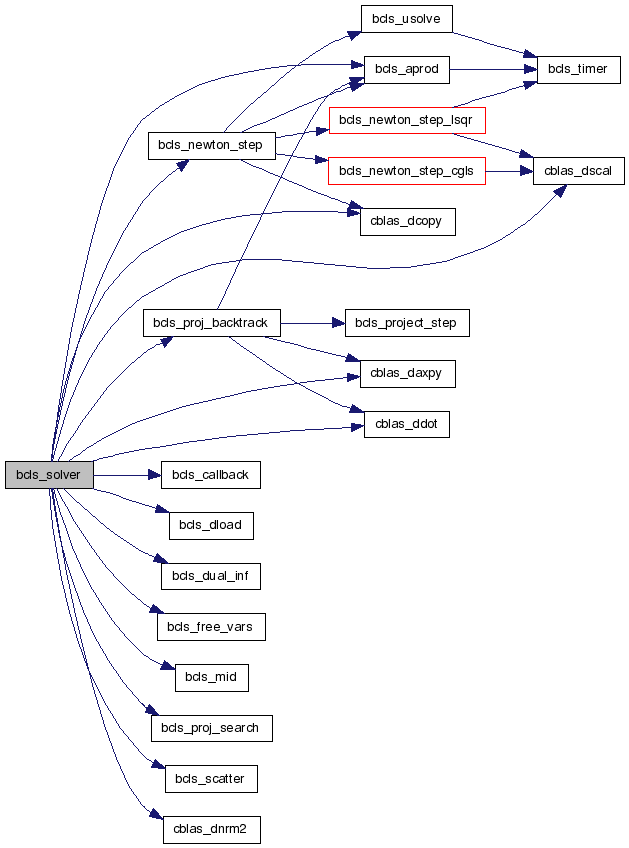

Here is the call graph for this function:
