Lab 1

In this lab, we design 3 puppets that can actuate at 1mm, 10mm and 100mm. Given below is a description to each individual action puppets Click here to see what happens to these puppets next.

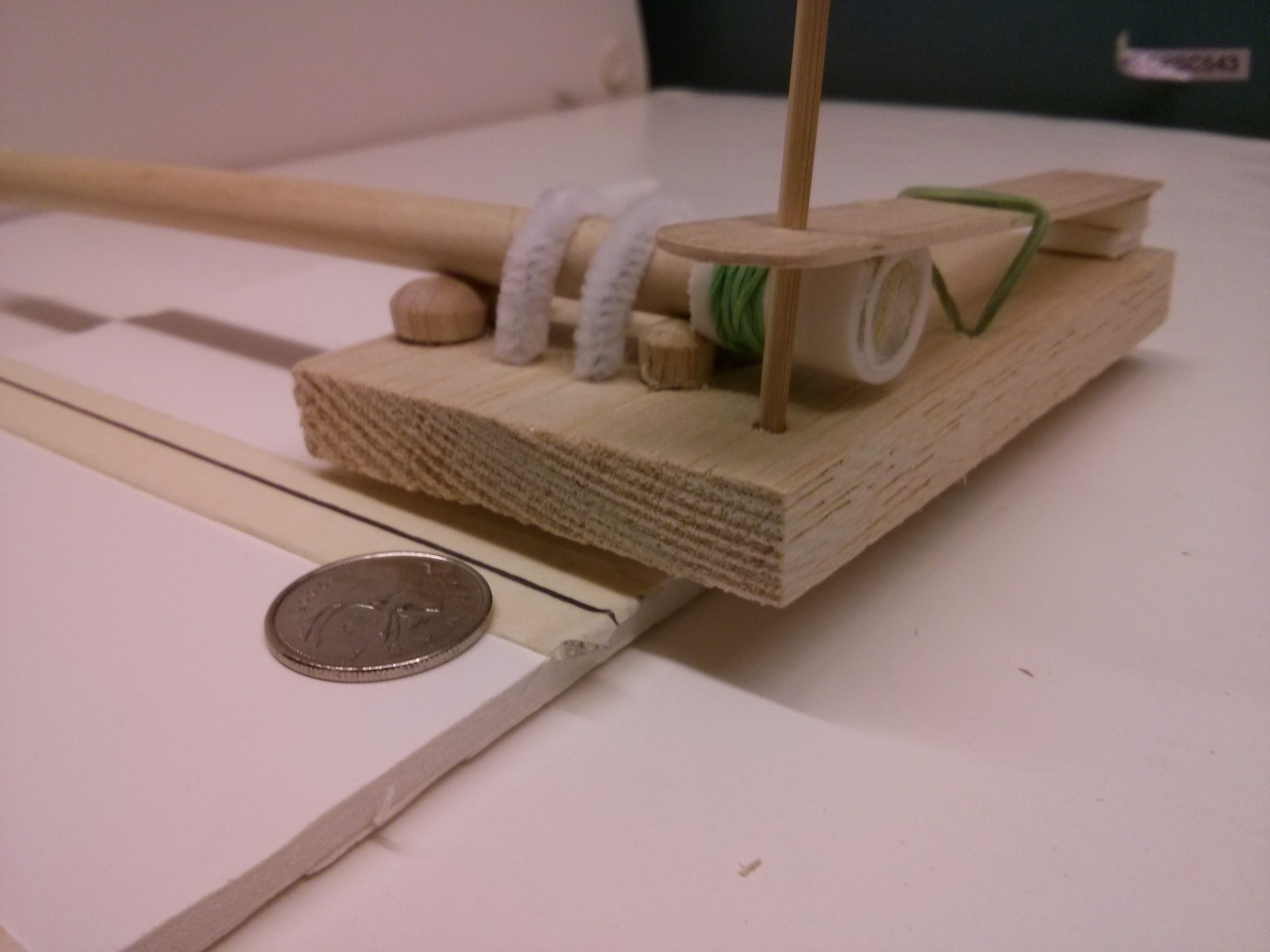

1mm Poker Puppet

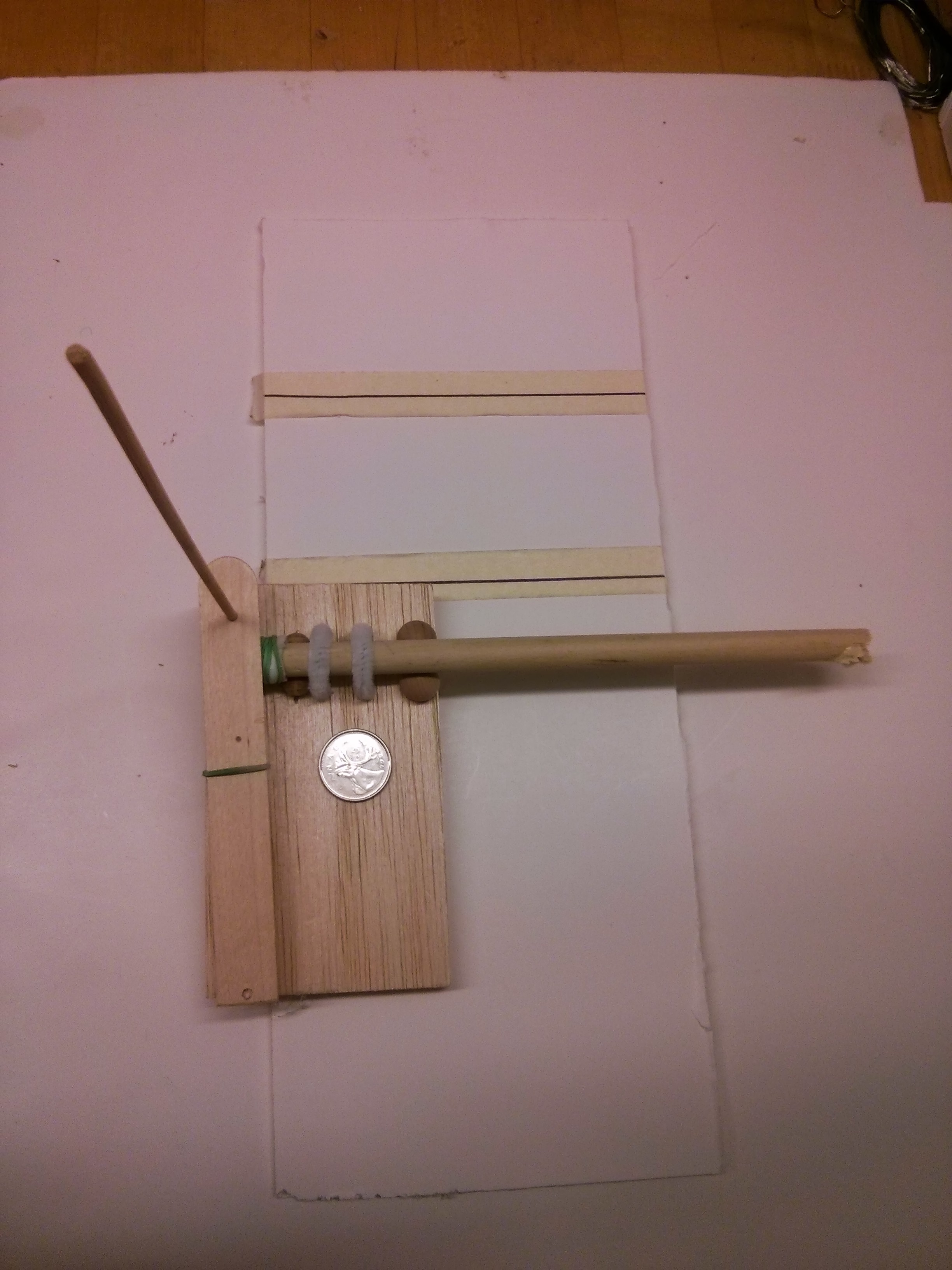

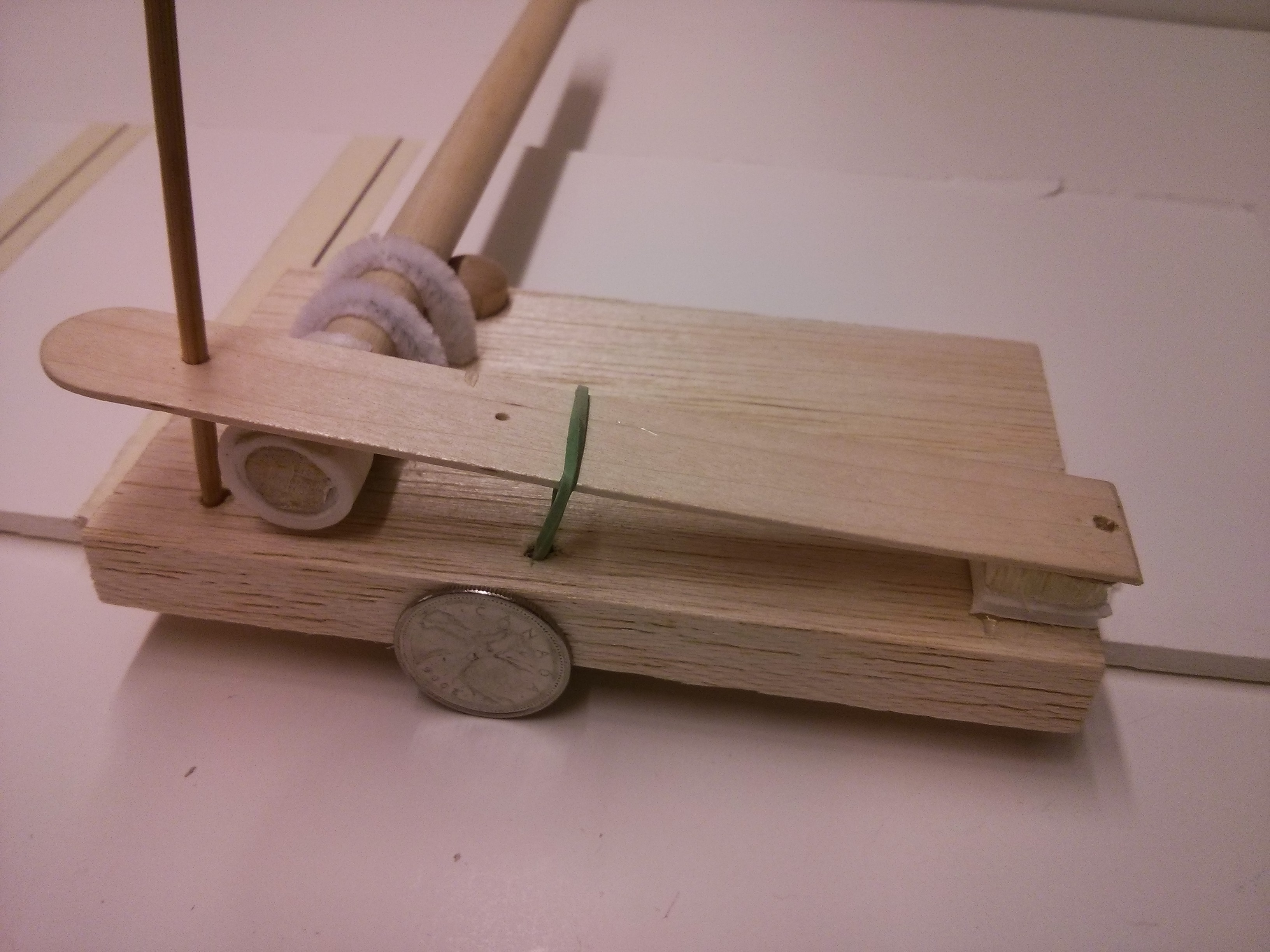

This actuator is based on eccentric cam mechanism. There is a lever attached to the top of the cam shaft. This lever can only move in a distance ranging between minimum and maximum radius of the cam shaft. I have designed the difference to be approximately 1mm. This lever has a pen connected to it which bores on to the base plate.

Action

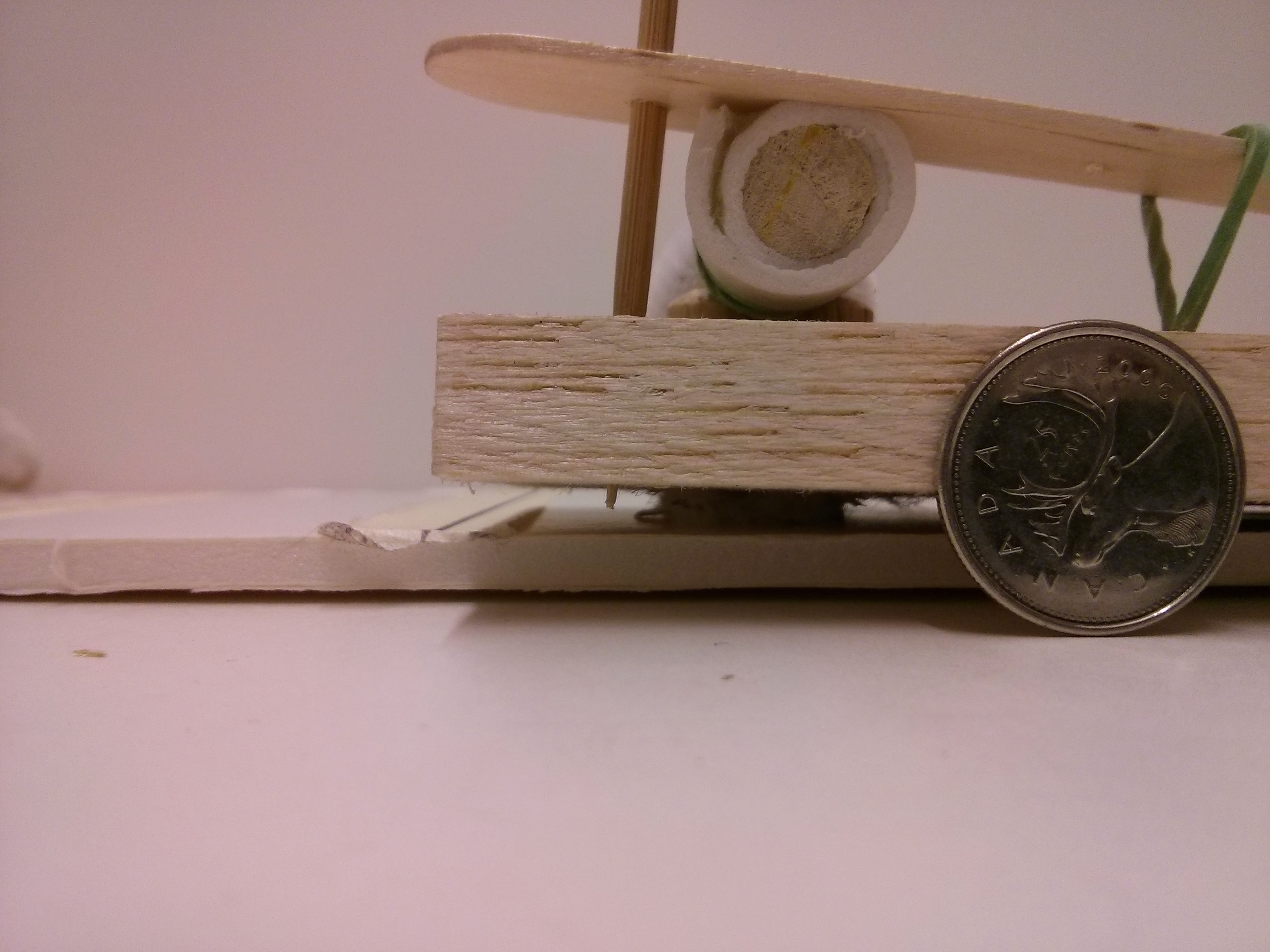

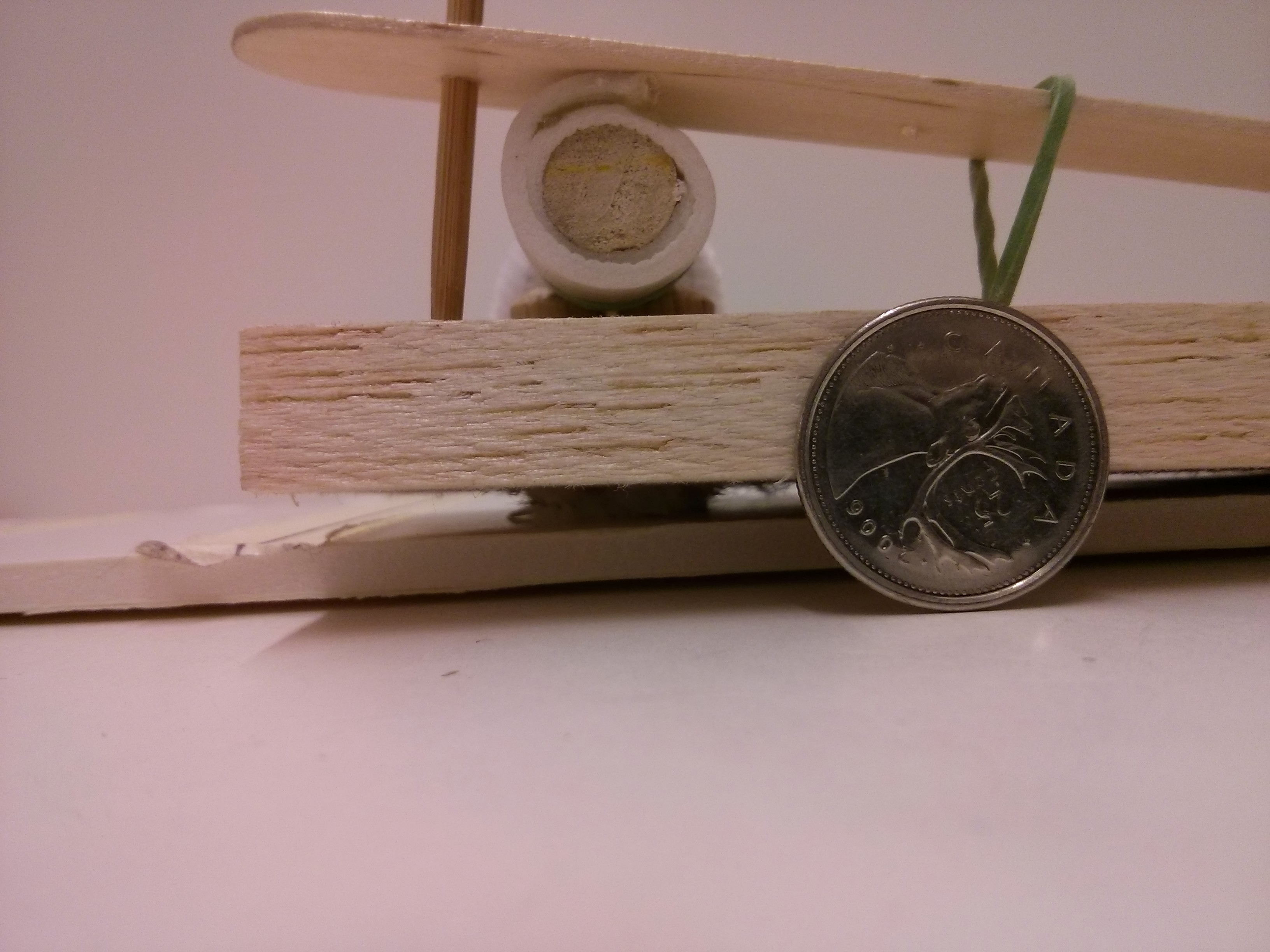

When the cam shaft rotates, the lever oscilates within 1mm distance. This oscillation is transferred as linear motion on to the pen. This pen only pops out (or pokes out) of the base plate when the cam shaft is at its minimum diameter position. These two extreme cam shaft positions are shown in the images below.

See video here: http://www.youtube.com/watch?v=2-08aaWPc2M&feature=youtu.be

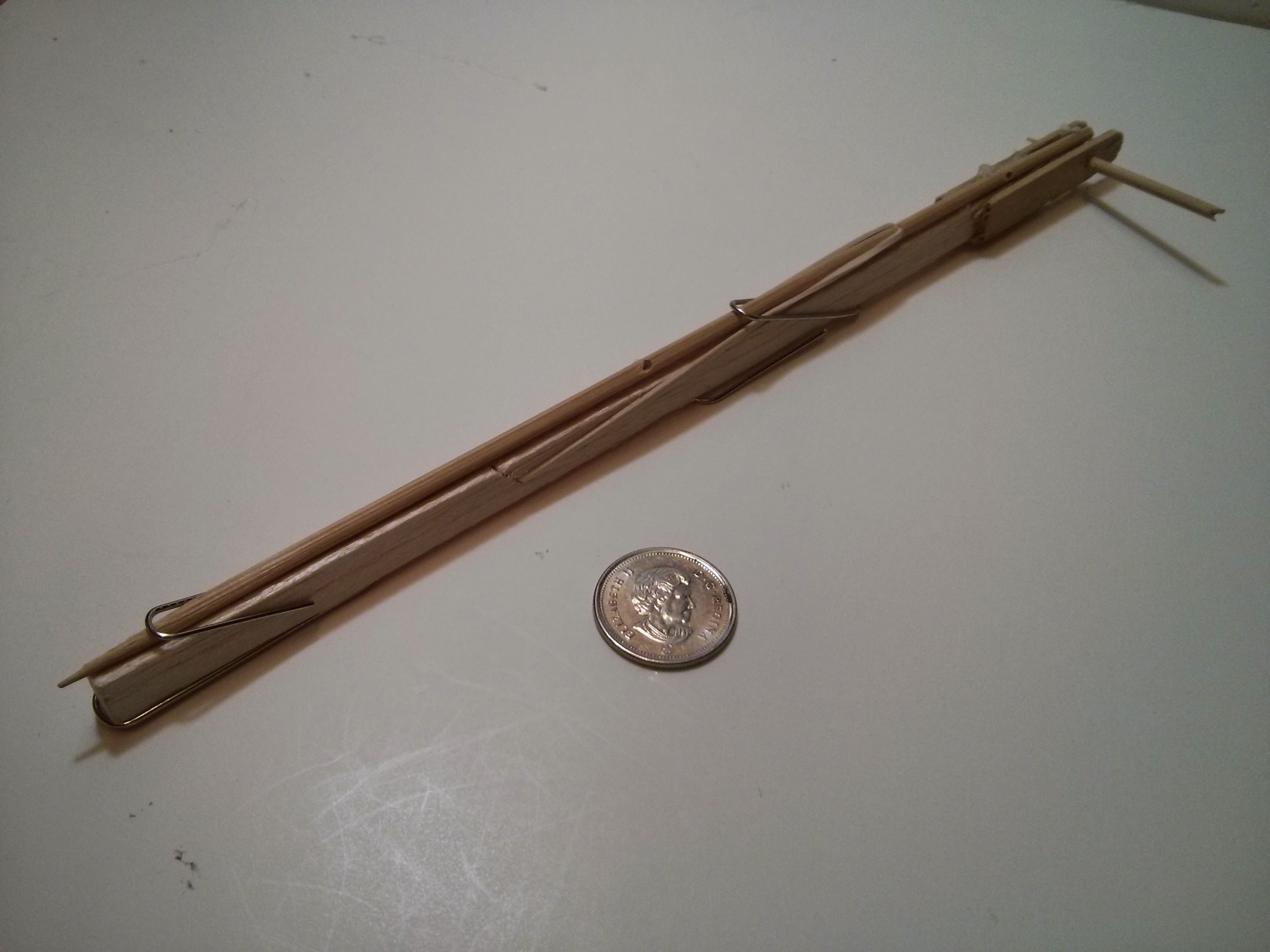

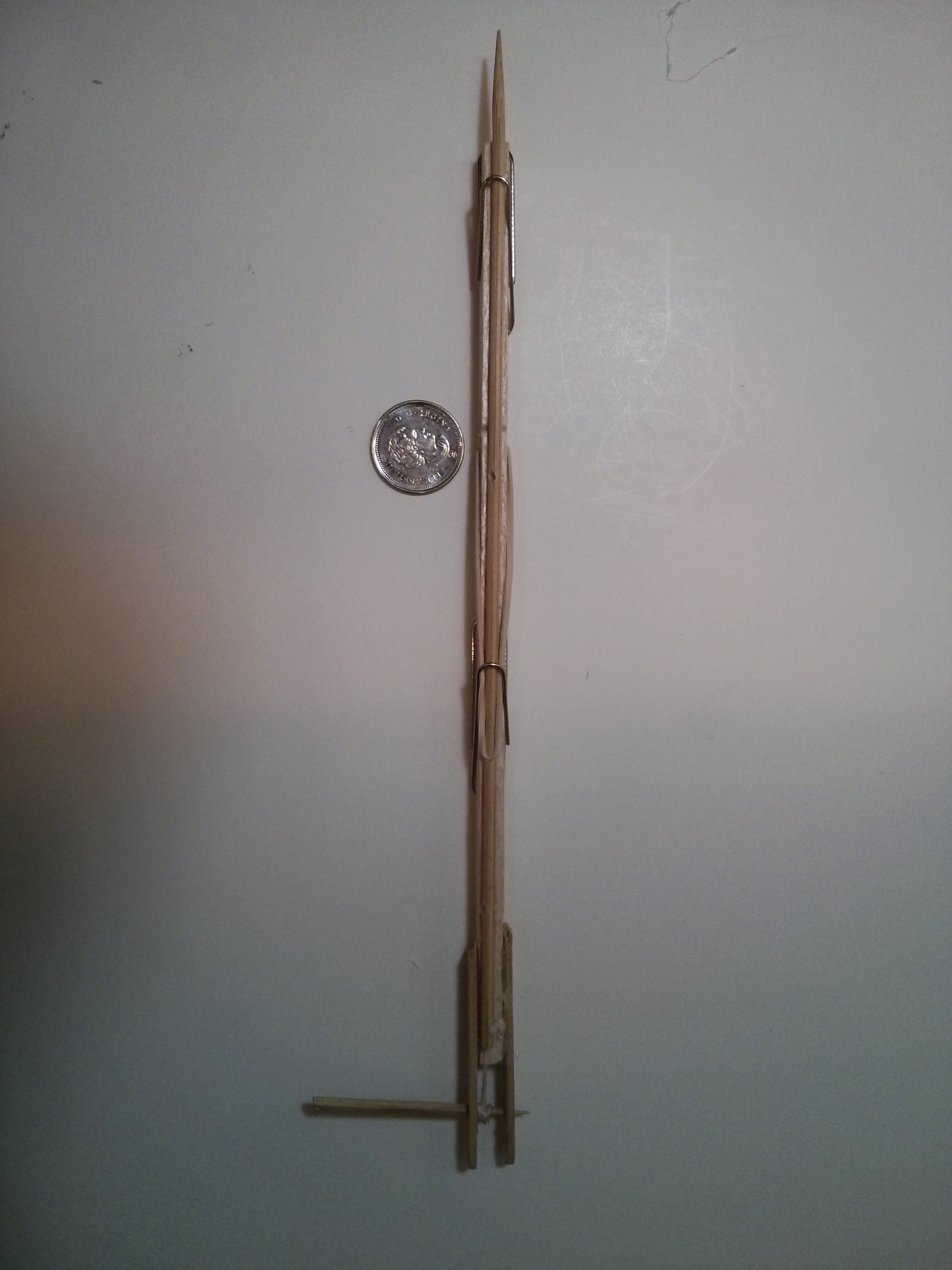

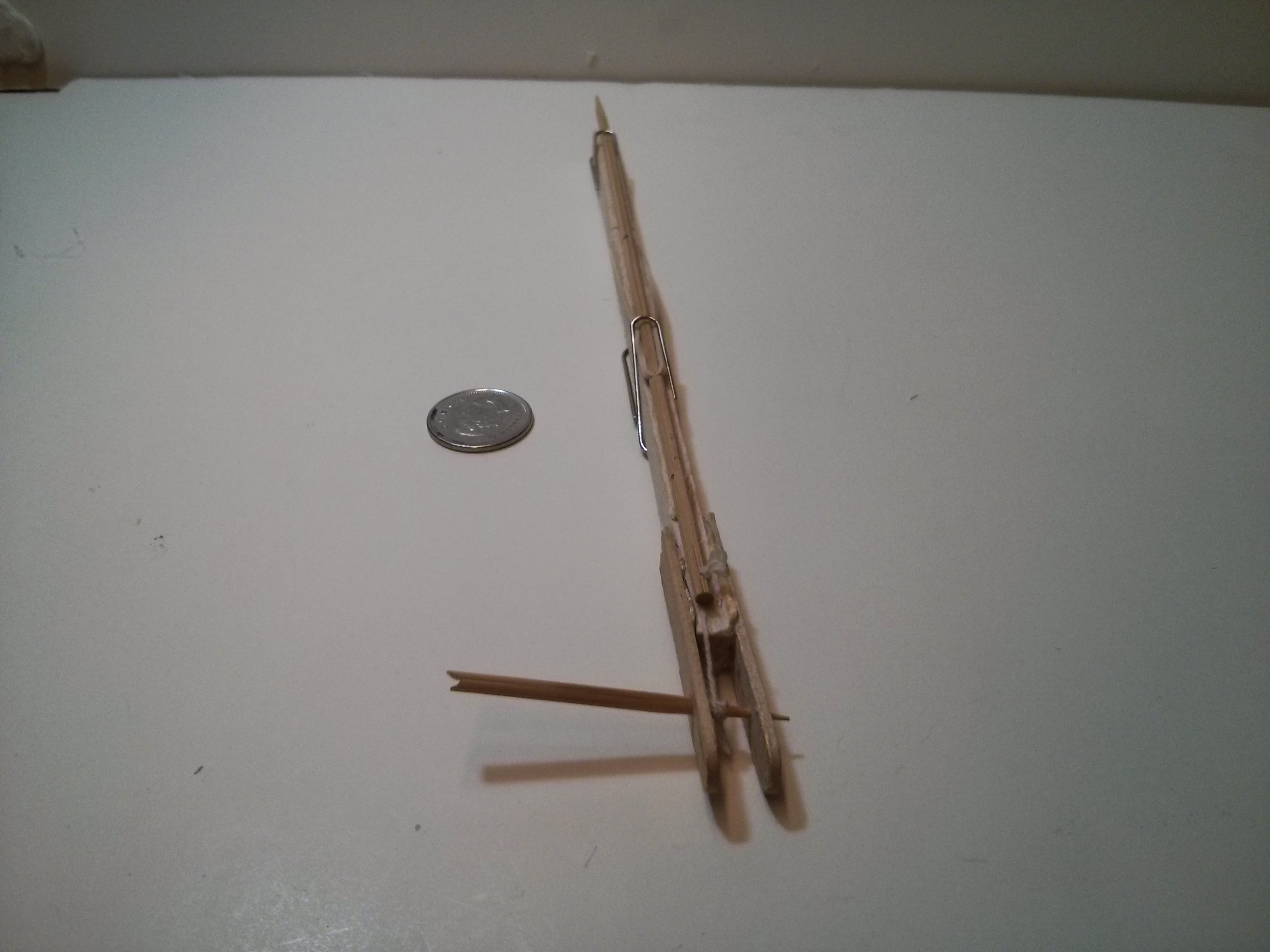

10mm Pen Puppet

This design transfer small circular motion to linear action. The total displacement is about 10mm. The rotatory shaft can rotate on one direction until the string is completely unwounded from the shaft. In the other direction, it can rotate only up to the position where the linear shaft's string lock is on its top. The rotatory shaft uses friction based locking mechanism to lock the linear shaft at a particular position. This design is inspired from traditional Nepalese instrument called "Sarangi".

Action

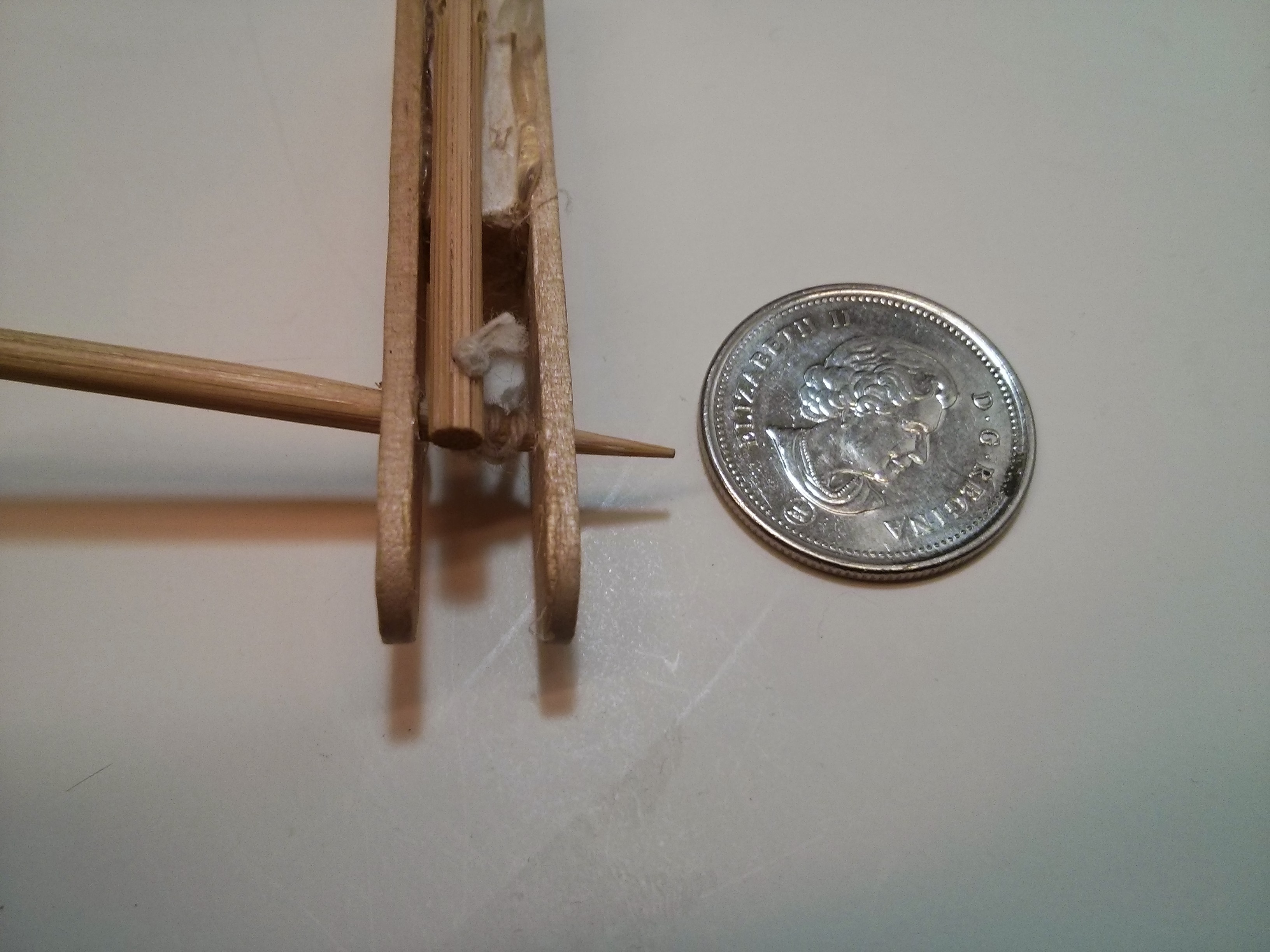

In the following images, the two extreme positions of the rotatory shaft are shown. Correspondingly, we can observe the displacement of the linear shaft to be around 10mm.

See Video here: http://www.youtube.com/watch?v=1uL_xB_lVZE&index=5&list=PLFNjF5XN33kHVeIN8pdtEKfSgrSi6UhiO

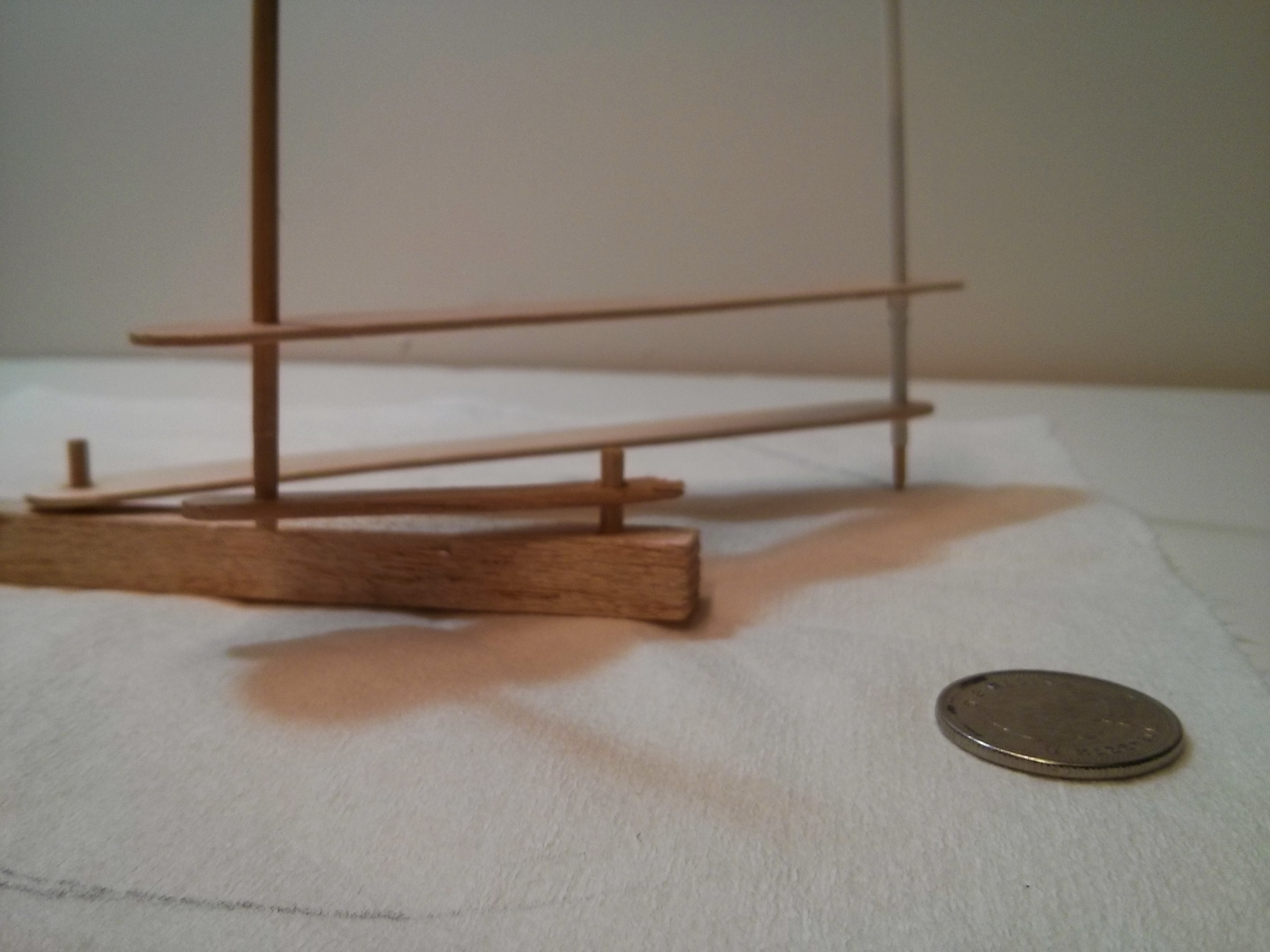

100mm Arch Puppet

This arch puppet transfer circular motion of small radius to an arch motion of larger radius. The small rotating link was designed to half approximately half the radius of large rotating link. The connecting link between the two rotating links is arbitrarily chosen. In this design, the spacing between to rotating links on the base was varied to achieve approximately 100mm arch motion.

Action:

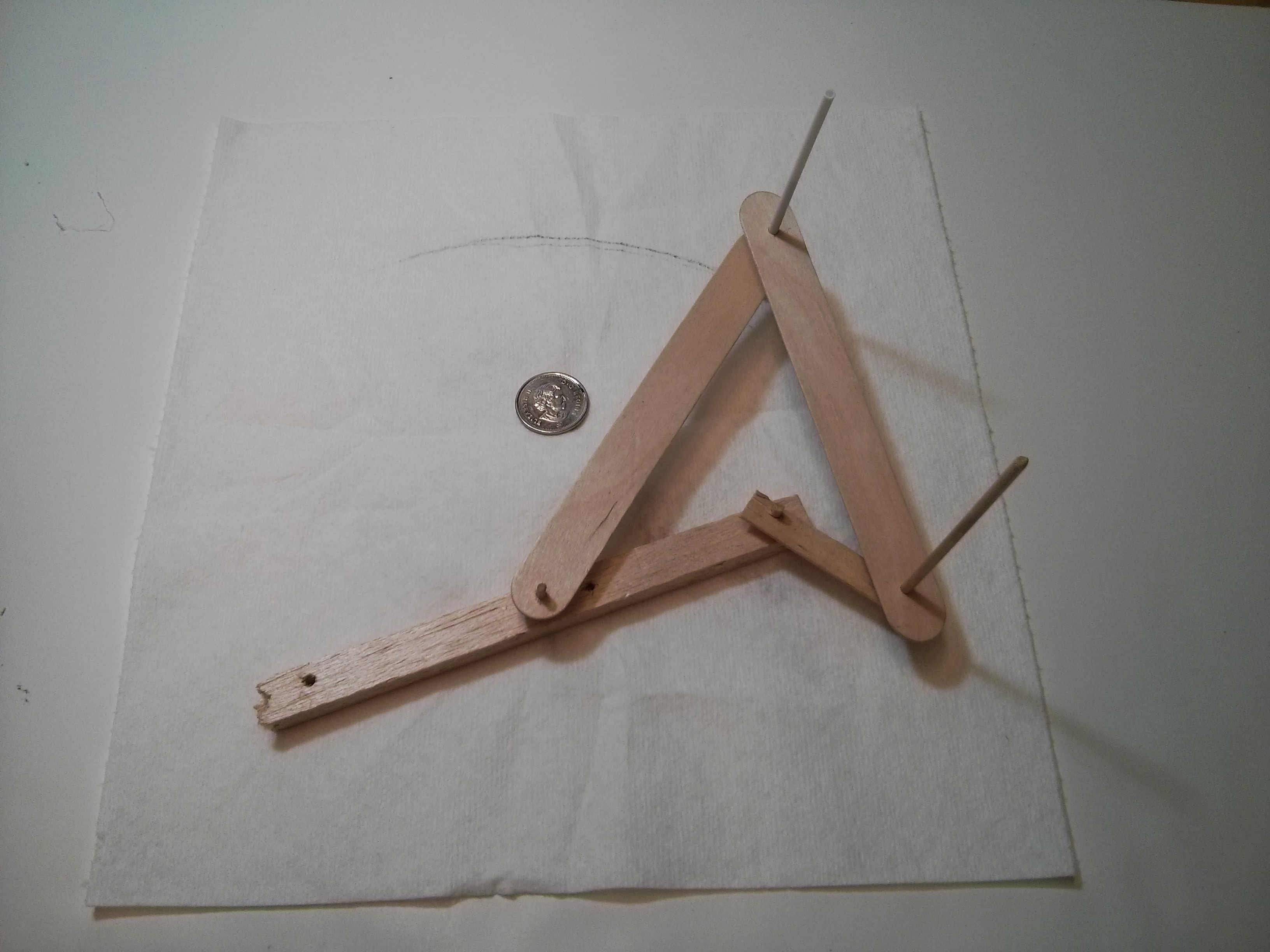

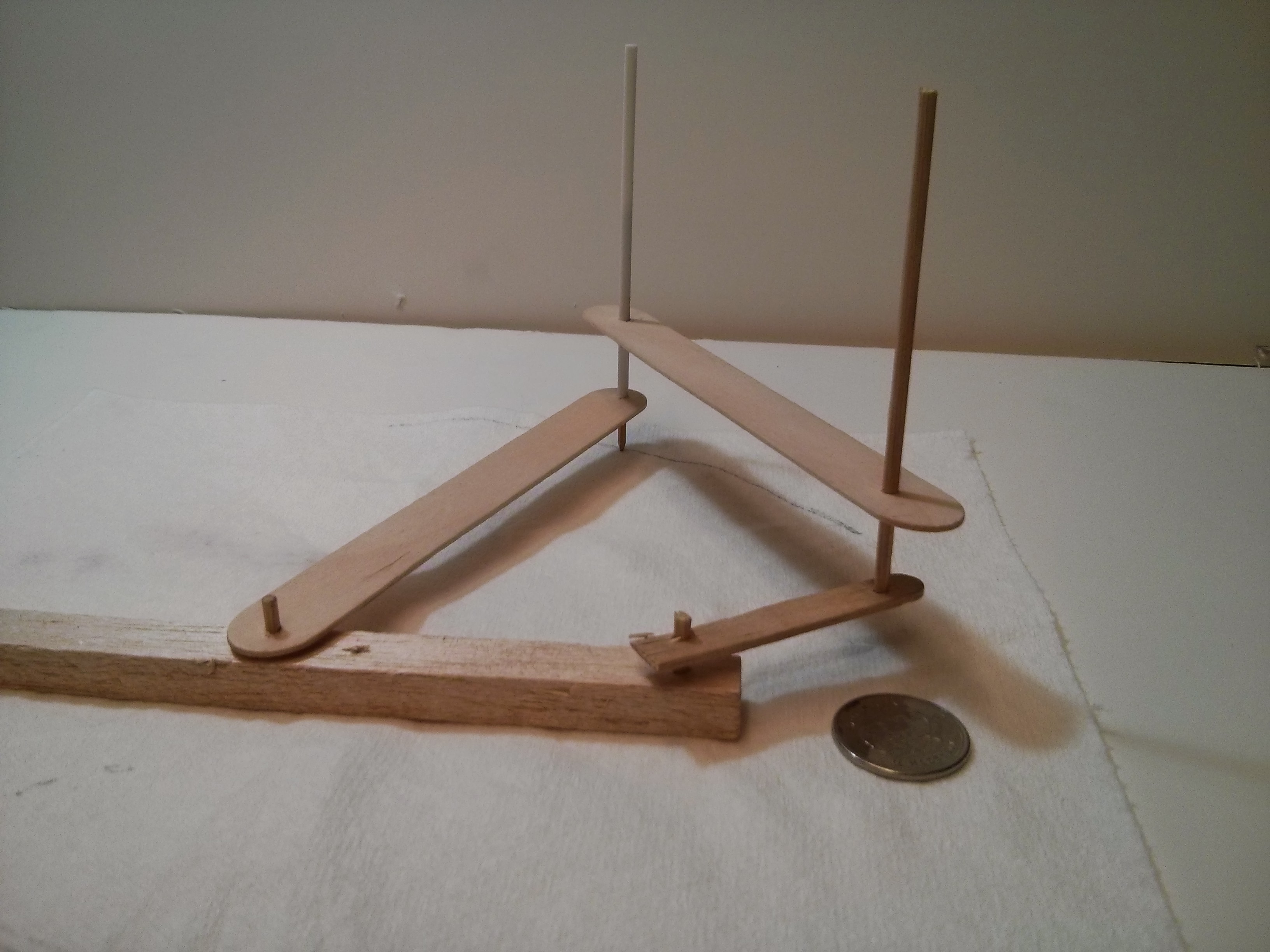

This image shows puppet half way between two extremities. The end effector is a pen which draws on the paper as shown

See video here: https://www.youtube.com/watch?v=3G-MnAZegX0&list=PLFNjF5XN33kHVeIN8pdtEKfSgrSi6UhiO

-- BikramAdhikari - 21 Jan 2014
