We are often in situations where we deal with information in the world
that spans two or more dimensions. For example, atmospheric models
predict air pressure and wind velocities over three-dimensional
regions. Engineering models predict the deflection of a
two-dimensional plate when subjected to a certain load.
Information that is organized in a two-dimensional grid can be represented
as a list of lists. There is more than one way that this
representation can occur. We can split the two-dimensional grid into
rows and represent information on each row with a list, or we can split
the two-dimensional grid into columns. The choice is somewhat
arbitrary and may depend on the particular problem that we are trying to
solve.
Example

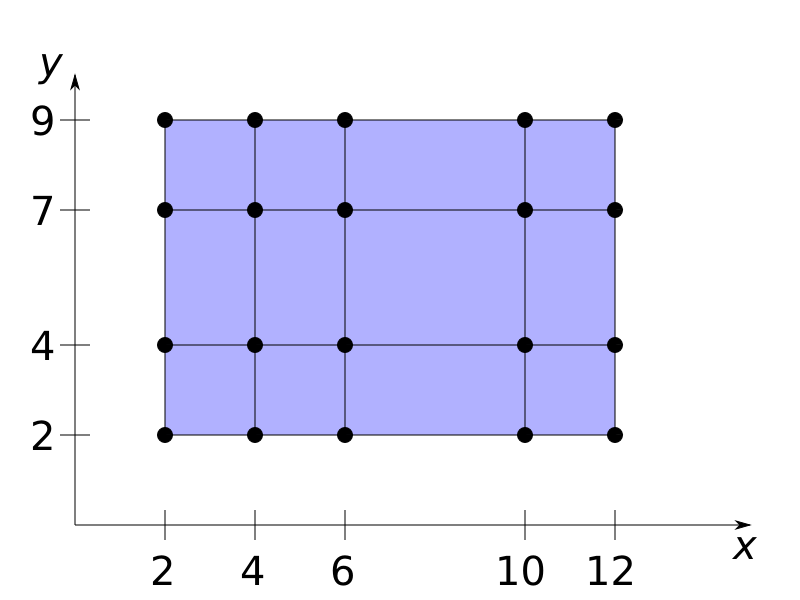

Suppose we have a two-dimensional plate aligned with the x
and y axes as illustrated in
Figure 4.1. Further suppose that physical models predict that when
the plate is heated in a certain way, the temperature at a point (x,
y) on the plate is given by the
formula:
T(x, y) = 20 * (x2 + y2)
Now suppose we want to know the temperature at all points on a
two-dimensional grid as illustrated in Figure 4.1 below.
This information can be represented as a list of lists. We can think
of the problem this way:
lox = [2, 4, 6, 10, 12]
gridTemps = []
for x in lox:
<compute column of temperatures -
colTemps>
gridTemps = gridTemps + [colTemps]
Now, to create a column of temperatures for a given value of x:
colTemps = []
for y in [2, 4, 7, 9]:
colTemps = colTemps + [T(x, y)]
Note that we've assumed the existence of a Python function T
that, given the x and y
coordinates of a point on the grid, produces the corresponding temperature
at that point.
Putting it all together we have:
lox = [2, 4, 6, 10, 12]
loy = [2, 4, 7, 9]
gridTemps = []
for x in lox:
colTemps = []
for y in loy:
colTemps =
colTemps + [T(x, y)]
gridTemps = gridTemps + [colTemps]
Now we can start re-factoring this code using list comprehensions.
First, we work on the inner loop:
lox = [2, 4, 6, 10, 12]
loy = [2, 4, 7, 9]
gridTemps = []
for x in lox:
colTemps = [T(x, y) for y in loy]
gridTemps = gridTemps + [colTemps]
then the outer loop:
lox = [2, 4, 6, 10, 12]
loy = [2, 4, 7, 9]
gridTemps = [[T(x, y) for y in loy] for x in lox]
Assuming that T(x, y) is computed using the function given
earlier, gridTemps is assigned the value:
Note that the type of gridTemps is (listof (listof
int)). Further note that gridTemps[0] is the
list [8, 20, 53, 85] and that this represents temperatures
at the points (2, 2), (2, 4), (2, 7) and (2, 9) - in other words, at
those points lying in the first column of the grid.
