Assignment 4

538B Distributed Systems: Assignment 4

Due: Feb 26th at 9PM

Winter 2015

In this assignment you will create a simple distributed key-value service to replace the centralized key-value service from assignment 3. Your service will use a collection of nodes to distribute the load of storing keys/values and will include a designated front-end node to mediate access to the distributed key-value service.

Overview: The centralized key-value service from assignment 3 has several drawbacks: the hosting node is a single point of failure, the hosting node may run out of storage capacity or become overloaded with client requests. In this assignment you will distribute the storage of keys/values (across a set of kv nodes), but you will retain a single node (the front-end) for accessing the key-value service. Your system will have the following architecture:

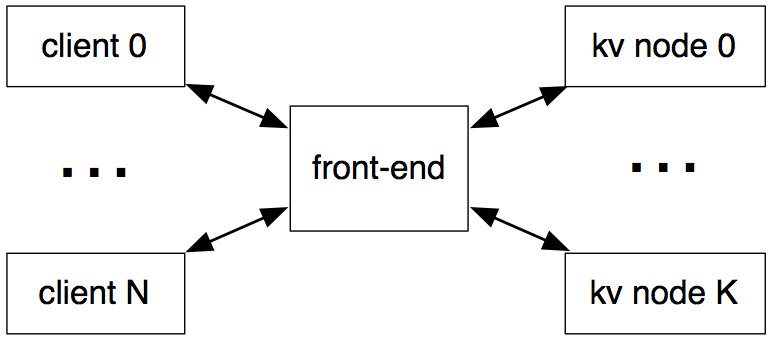

system architecture

Note that the front-end node mediates all access to the kv nodes and the kv nodes do not communicate among each other. As in the previous assignment your system must work with an arbitrary number of clients (N), and must also work with an arbitrary number of kv nodes (K). Further, your system must provide an identical interface to the client nodes (as in the previous assignment), balance the storage load of keys/values across the kv nodes, and handle joining and failing kv nodes.

Front-end node. The front-end is responsible for (1) responding to client queries, (2) tracking kv nodes as they join and fail, and (3) partitioning the key-space between the kv nodes (i.e., determining which kv node is responsible for storing which set of keys/values).

KV nodes. A kv node is a storage node that associates some set of keys with values. A kv nodes communicates solely with the front-end node. A kv node does not maintain any durable state.

Implementation requirements:

  • You cannot change the client API of the key-value service from assignment 3. This API and its semantics must remain identical. That is, your code from the previous assignment must continue to interoperate and work with your new distributed key-value service.
  • Exactly one kv node must be responsible for storing the value of a key. If this kv node fails, the key becomes (and must remain) unavailable.
  • Given a sufficiently long time during which kv node joins and failures do not occur and new keys are not created (i.e., written to by clients), the number of keys stored by kv nodes is balanced. That is, the front-end must actively load balance the storage load across kv nodes.
  • As in the previous assignment you must use the GoVector library to track the partial ordering between important events (e.g., message sends/receives and synchronization events) in your distributed system and to log these events to a log file.
  • The front-end must register itself in the GoVector timestamps (i.e., it should also maintain a GoVector log file).

Assumptions you can make:

  • The front-end node does not fail
  • No network failures

Assumptions you cannot make:

  • Processes have synchronized clocks (e.g., running on the same physical host).


  • As in assignment 3, be methodical and create the distributed key-value service step-by-step. First, create the front-end that maps all keys to a single, hard-coded, key-value service node. Do not continue until you have a working version of this basic service. Then, consider how to add new key-value service nodes. Solve key load-balancing in the final step (it is an optimization, so leave it until the very end)
  • The API between the front-end and the key-value nodes is up to you. Feel free to define an API of your choice.
  • Clients and the front-end must communicate using RPC. The front-end and the kv nodes may communicate using whatever protocol you choose.

Solution spec: Write two go programs:

  1. A program that implements the front-end node, as described above, and takes the following arguments:
    • ip:port : address of the key-value service to be used by clients
    • ip':port' : address to be used by kv nodes
    • logfile : filename to which GoVector log messages will be written
  2. A program that implements the kv node, as described above, and takes the following arguments:
    • ip':port' : address of the front-end node
    • logfile : filename to which GoVector log messages will be written

What to hand in:

  1. A writeup (at most one page long) that describes your design and how it satisfies the above requirements
  2. Your implementations of a front-end node and kv node
  3. Three GoVector-based logs, each one a concatenation of the individual log files generated by the set of all nodes in the system. Each log must correspond to one of the following scenarios:
    • log-kv-join.txt : The first kv node joins the system and the service handles a few client operations.
    • log-kv-join-fail.txt : Two kv nodes join the system, the service handles some client operations. One of the kv nodes fails, and the keys it stored become unavailable to clients.
    • log-kv-balance.txt : A log that demonstrate active storage load balancing of keys by the front-end in response to new keys being created, or kv nodes joining/failing.
I recommend that you use ShiViz to inspect each of these logs to check that they indeed capture correct behavior of your system.

Also, note that your system must handle other possible scenarios (not just the ones described above).

Meta: Make sure to follow the course collaboration policy and refer to the assignments instructions that detail how to submit your solution.
