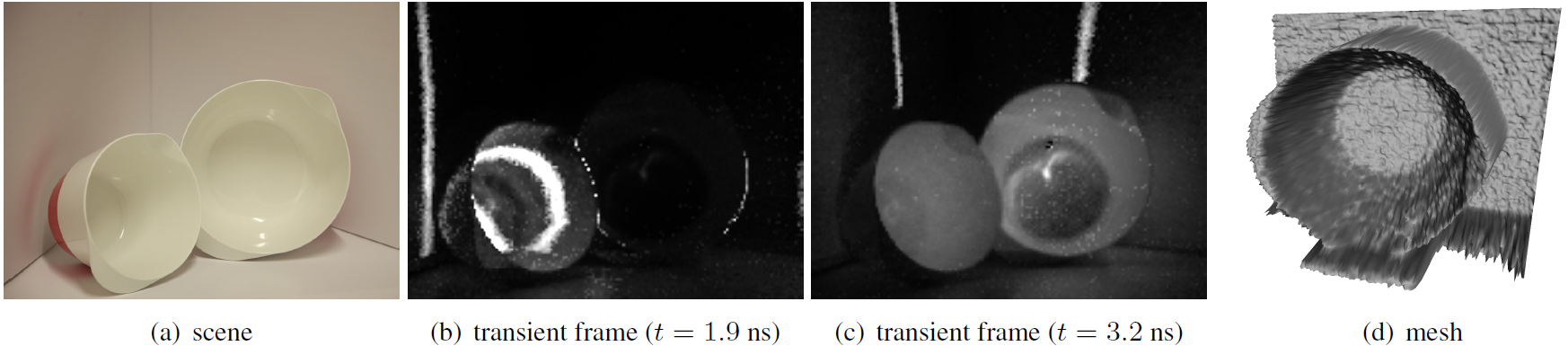

(a) We use a photonic mixer device (PMD) coupled with a 2D projector to acquire “light-in-flight” images and depth maps for scenes with complex indirect transport. (b)-(c) The sharp, evolving wavefronts of light travelling along direct and caustic light paths can be seen clearly. (d) We also recover time-of-flight depth maps in a way that is not affected by strong indirect light. This indirect light mainly consists of diffuse inter-reflections for the scene in (a) but we also show experimental results where caustic light paths dominate.


Abstract

We analyze light propagation in an unknown scene using projectors and cameras that operate at transient timescales. In this new pho-tography regime, the projector emits a spatio-temporal 3D signal and the camera receives a transformed version of it, determined by the set of all light transport paths through the scene and the time de-lays they induce. The underlying 3D-to-3D transformation encodes scene geometry and global transport in great detail, but individual transport components (e.g., direct reflections, inter-reflections, caus-tics, etc.) are coupled nontrivially in both space and time. To overcome this complexity, we observe that transient light trans-port is always separable in the temporal frequency domain. This makes it possible to analyze transient transport one temporal fre-quency at a time by trivially adapting techniques from conventional projector-to-camera transport. We use this idea in a prototype that offers three never-seen-before abilities: (1) acquiring time-of-flight depth images that are robust to general indirect transport, such as in-terreflections and caustics; (2) distinguishing between direct views of objects and their mirror reflection; and (3) using a photonic mixer device to capture sharp, evolving wavefronts of “light-in-flight”.


Paper and Video

Paper [TemporalProbing.pdf (9MB)]
Supplemental material [TemporalProbing_Supplementary.pdf (0.3MB)]
Video [TemporalProbing.mov (50MB)]




All images are © ACM, 2014, reproduced here by permission of ACM for your personal use. Not for redistribution.
