TimeElide: Visual Analysis of Non-Contiguous Time Series Slices.

Michael Oppermann Luce Liu, and Tamara Munzner

Abstract | Paper | Open Source | Video | Figures | Supplemental Material


We introduce the design and implementation of TimeElide, a visual analysis tool for the novel data abstraction of non-contiguous time series slices, namely time intervals that contain a sequence of time-value pairs but are not adjacent to each other. This abstraction is relevant for analysis tasks where time periods of interest are known in advance or inferred from the data, rather than discovered through open-ended visual exploration. We present a visual encoding design space as an underpinning of TimeElide, and the new sparkbox technique for visualizing fine and coarse grained temporal structures within one view. Datasets from different domains and with varying characteristics guided the development and their analysis provides preliminary evidence of TimeElide's utility.


TimeElide: Visual Analysis of Non-Contiguous Time Series Slices.
IEEE VIS Short Papers 2021.

» UBC Pre-Print PDF
» OSF Open Access

Open Source

» Open source code on Github
» Online demo

Video Preview

» Video Preview

High-Resolution Figures

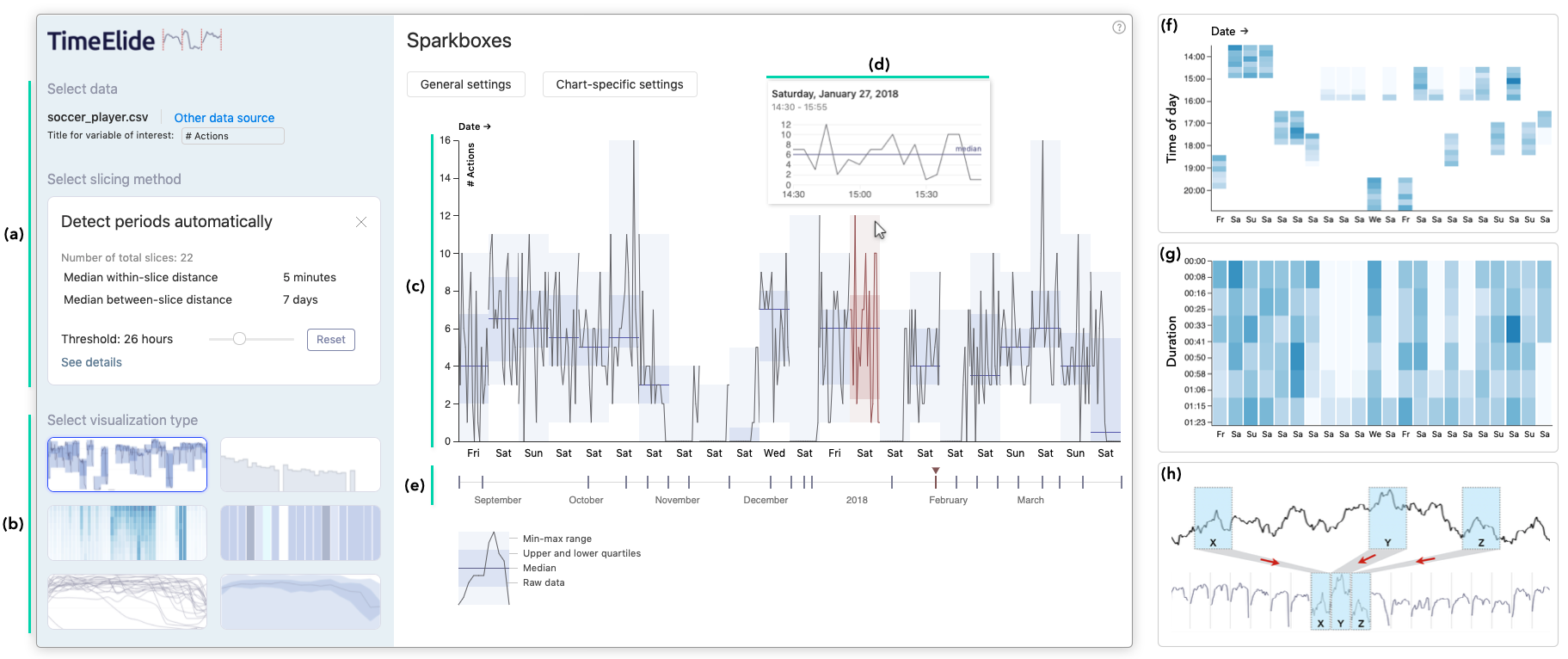

Fig. 1. TimeElide. (a) Select data source and slicing method, (b) select visualization type, (c) sparkbox visualization to show the number of per-player events during 22 soccer matches, (d) tooltip for the currently active slice, and (e) global timeline. Alternative visual encodings: (f) 2D heatmap with absolute within-slice timing, and (g) 2D heatmap with normalized within-slice timing. (h) Illustration of extracting non-contiguous time series slices according to given periods of interest (manual slicing).

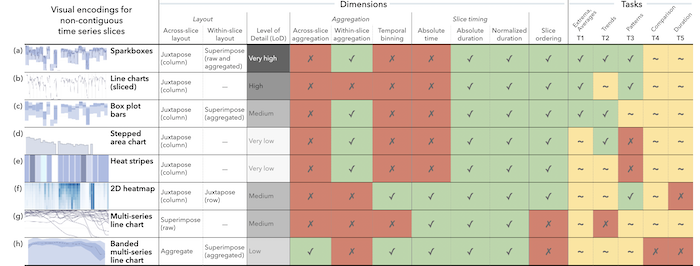

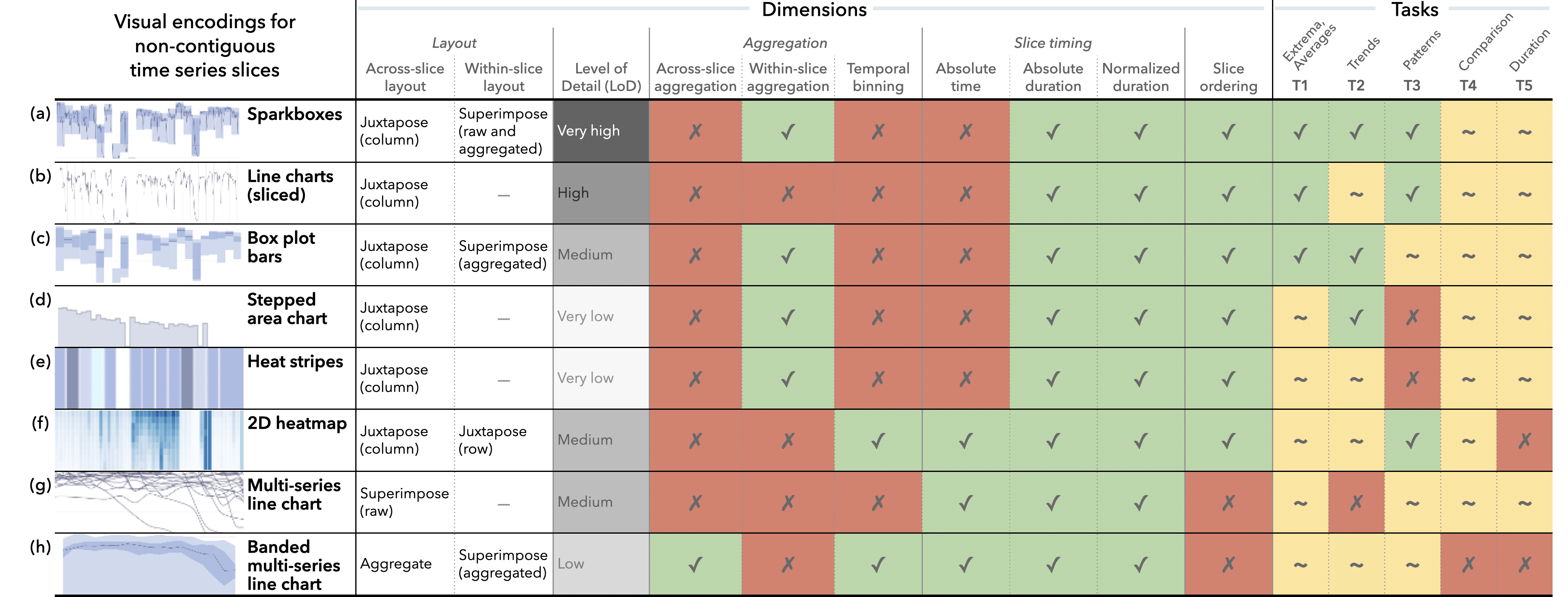

Fig. 2. Visual encoding design space for non-contiguous time series slices. Green: Supported, Yellow: Partially supported, Red: Not supported

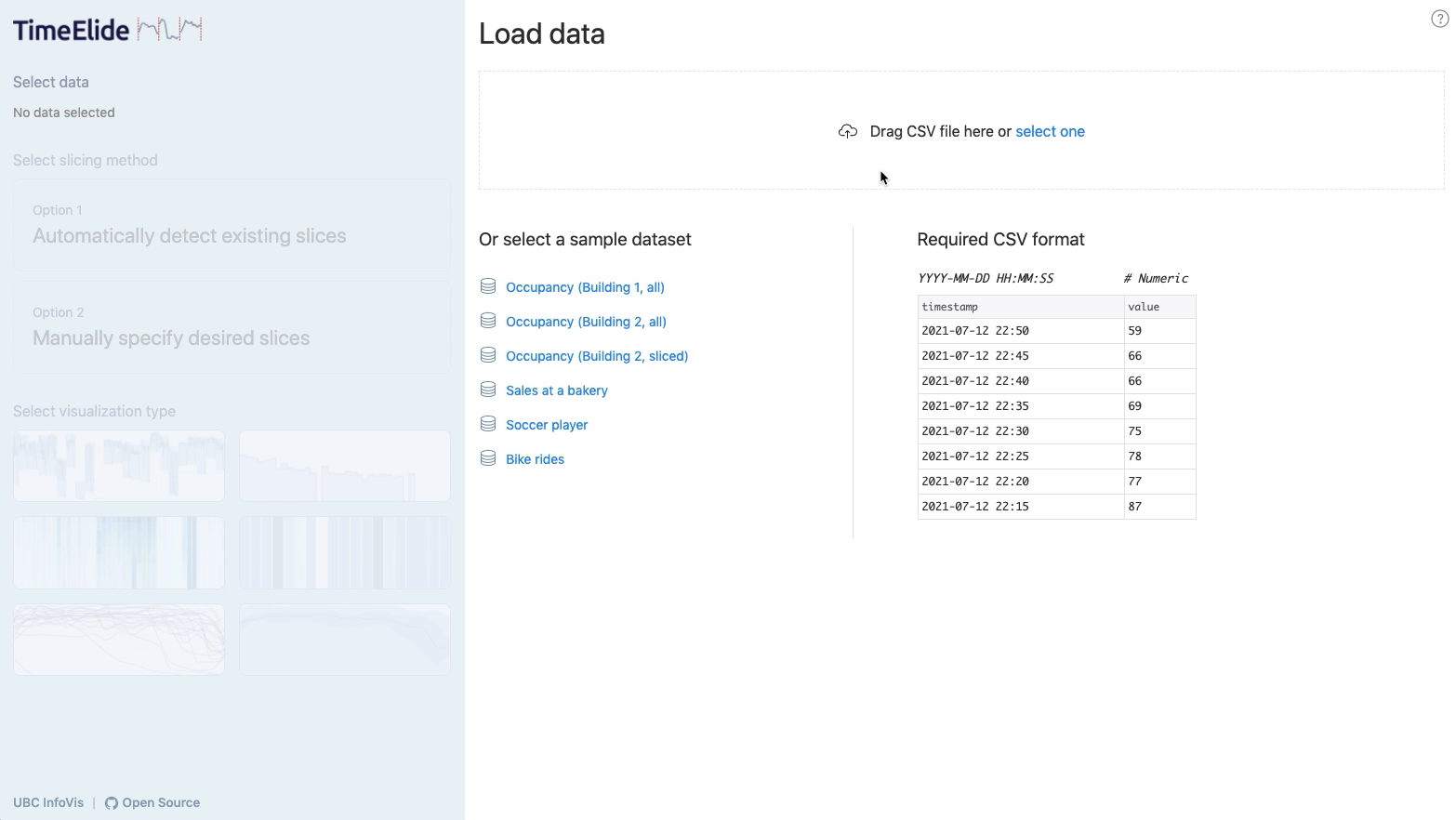

Fig. 3. Upload data page.
