My Little Creature Builder

Introduction

This is my project for CPSC533B (Algorithmic Animation). The goal of this project is to create a tool that allows users create their own moving creature of periodic motions by defining its body structures and attributes. This idea came from the two paper, "Virtual Wind-up Toys"[1] and "Sensor-Actuator Networks"[2], and the SodaPlay mass-spring creature builder (www.sodaplay.com)

Features

users can build a planar creature out of resizable blocks (links) which can be hinged together
actuators can be added to joints to move links
each actuator is controlled by proportional-derivative (PD) controller [1] and its own list of desired angles at specific times within the motion cycle.
saving and loading
camera control for following the moving creature

Downloads

Usage

There are two modes in this program - edit mode and play mode. To toggle between the modes, just simply click the "PLAY MODE" or "EDIT MODE" button.

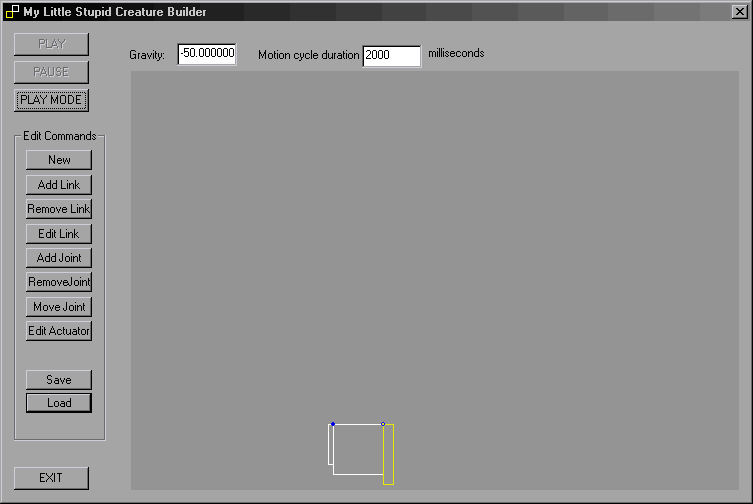

Edit Mode - construct the creature

There are three types of components of a creature:

Link - the body parts of the creature
Joint - join two links together
Actuator - the muscle of a joint to move one of its attached link

Links

attributes include width, height, mass and location
mass is evenly spread through out the link

Joints

attributes include the initial position and the two links to be connected.
the initial position determine where the two links be connected

HINT: to attach two links together with a joint, you must have a joint defined for each link. The best way to do this is to first create 2 links, then add a joint to each of them. Click "move joint" to move the joint to the desired corner or point on the edge of each link. Then click "move joint" again to exit the move joint mode. Move the 2 links together and the joint should be able to snap to each other. Only two joints in the same position are valid joints. All other joints are ignored in play mode.

Actuators

attributes include the link and the joint associated, spring and damper constants, and the list of desired angles at specific times.
the link is the link to be moved, while the joint is the pivot of rotation.
spring and damper constants (ks and kd) represent the strength of the actuator. It is recommended to have a ks:kd ratio of 10:1[2]
at time t, the current desired angle of an actuator is the angle with the largest time that is smaller than t.
the angle value is clockwise. At initial start, all angles of the joints are zero. The angle actually represent how much a link rotation in relative to its other connected link.

HINT: to edit an actuator, you have to select a link and a joint. You can either select a link first, then the joint, or the other way around. Due to a minor bug, sometimes the selected joint is not displayed correctly. You may click around until it is displayed correctly. In order for an actuator to be effective, it has to have a time = 0 angle value in its desired angle list.

There are also some global variable to be edited:

gravity - increase it to make the creature suffer. However, a too low gravity will make the creature harder to control.
duration of a motion cycle - (in milliseconds) current time t will be reset to 0 when t reach this value

Saving and loading

you can save and load the design by simply clicking the "save" and "load" buttons. It is recommended to save regularly while editing.

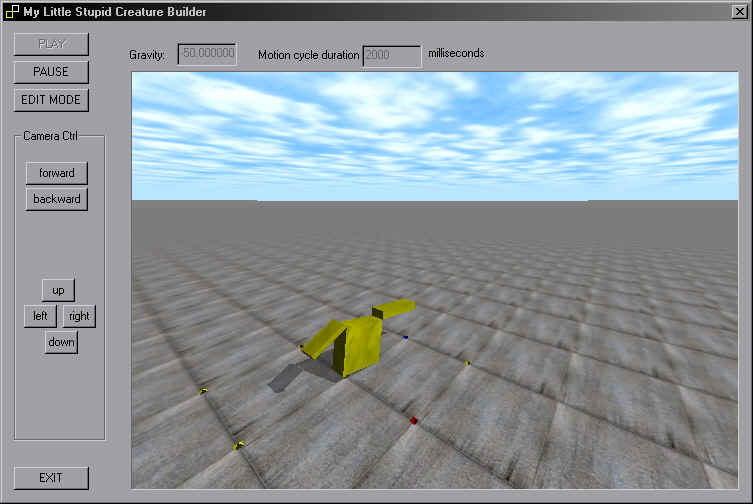

Play Mode - simulate the motion

After switching from Edit mode, the motion is paused. Click "PLAY" to play the motion. Click "PAUSE" to pause it again.

Camera can be moved in Play mode to allow viewing in different perspectives and following the creature if necessary. Click the up, down, left, right buttons to change the angle of the camera, and backward/forward buttons move backward and forward.

Implementation

This program is implemented under Windows platform using VC++. Libraries used include MFC for the GUI, Windows GDI for 2D graphics display in Edit mode, OpenGL for 3D graphics display in Play mode, and Open Dynamic Engine (ODE) for the physics.

The OpenGL 3D graphics display codes (drawstuff.cpp) are mostly sample codes copied from ODE sample codes, except the camera control. Stuffs in setup.cpp basically integrate drawstuff, and MFC together, while simulation.cpp is for executing the simulation using ODE.

In edit mode, by having a joint defined for each link, it will ease the job of tracking of which joint is valid and invalid. Also, snapping of joints can help user to align the joint into the correct position.

By defining the actuators in lists of desired angle is sort of like having a pose graph of the creature [1] except that the times assigned for each desired angle can be more flexible.

To determine the torque generated by the actuators, the PD controller formula for torque is used, where q_d is the desired angle between two links at the current time, and k_s and k_d are the spring and damper constants responsible for the proportional and derivative components of the torque. [1] A timer class is implemented to keep track of the time and do the time cycle. The current joint angles and angular velocities are converted from rotational matrices provided by ODE. The desired angles of the actuator are the desired joint angles. So, they have to be converted to be the desired rotation of the link associated with the actuator in order to be used by the PD controller.

By working with a 3D dynamic engine, I found it difficult to keep things within the vertical plane because sometimes when forces get too large, objects will fall off to the sides. I have done a little trick to keep the creature on the vertical plane. This is to set the depth of the blocks to a very very large number while displaying it as not as deep. It should be ok as long as everything are along the same plane.

Results and Conclusion

Simple creatures with reasonably "good" periodic motions (i.e. not out of control) can be created within several trials. But of course, the number of trials depends on the complexity of the creature.

We can also create two different creates and observe the collision, add in environmental obstacles

Future Work

Different shapes - ODE can actually support different shapes including spheres and cylinders. Links can be created in these shapes to increase variety.

Different colors for links - This can probably help user to visualize and analyze the motion of the creature more easily, and hence, ease the job of creating a creature with the desired motion.

Real-time data display - Display the current desired angles of all actuators and the current angles of its associated joints. User can highlight the associated link by highlighting the actuator in the list. This can also help user to visualize and analyze the motion.

Real-time attribute editing - Allow user to edit attributes such as link mass, gravity and actuators' desired angles, and see real-time result. This will probably further ease the job of creating the desired motion.

Improve GUI - make the edit mode more user friendly and easy to use. Allow undo, copy and paste.

Sensors - they can also help creating desired motions and increase the fun. Sensors can be touch, angular, eye, or linear sensors. [2] The response of the sensors can be changing the desired angles of actuators. Touch sensors and angular sensors are mainly for better motion control. Linear sensors, in this program, can be used to detect if a specific object is nearby, which will be useful in the multi-creature play mode discussed in the following paragraph. Eye sensors can be used to follow objects if creatures can move around in the horizontal plane.

Multi-creatures play mode - Also 2 or more separate creatures being simulated in the play mode. Each creature should be able to be exported/imported. Then the two creatures can fight with each other.

3D simulation - Allow creatures to move freely over the 3D space instead of restricting it within the vertical plane. This will increase variety and may add more fun. However, this will make things much more complicated. It will need a much more complicated GUI to take care of the axis of rotations, and will be harder to create a creature with the desired motion.

References and Links

References

[1] M. van de Panne, R. Kim, and E. Fiume. Virtual Wind-Up Toys, Proceedings of Graphics Interface '94, May 1994, 208-215.

[2] M. van de Panne and E. Fiume. Sensor-actuator Networks, Proceedings of SIGGRAPH `93. In Computer Graphics Proceedings, ACM SIGGRAPH, 1993, 335-342.
