Contents

Description demo_regression_CV.m

Demonstrates usage of ml_general_CV for regression on a variety of kernelized L2 regression functions

clear all
close all
generateData_sigmoid

usage of RBF kernelized L2 regression

options_kn = [];
options_kn.lambdaL2 = 8;
options_kn.basisFunc = @ml_kernel_rbf;
options_kn.basisOptions.sigma = 0.5;
options_kn.subModel = @ml_regression_L2;
options_kn.subOptions.addBias = 1;
model_kn = ml_regression_basis(Xtrain, ytrain, options_kn);
yhat_kn = model_kn.predict(model_kn, Xtest);
testError_kn = mean(abs(yhat_kn - ytest));
fprintf('Averaged absolute test error with %s is: %.3f\n', ...
        model_kn.name, testError_kn);

Averaged absolute test error with Regression under Basis Change with: RBF Kernel is: 0.046

usage of RBF kernelized L2 regression with CV on sigma

options_cv1 = [];
options_cv1.lambdaL2 = 8;
options_cv1.subModel = @ml_regression_basis;
options_cv1.subOptions.subModel = @ml_regression_L2;
options_cv1.subOptions.basisFunc = @ml_kernel_rbf;
options_cv1.subOptions.subOptions.addBias = 1;
options_cv1.paramNames = 'basisOptions.sigma';
options_cv1.paramValues = [0.5 1 1.5 2 2.5]';
options_cv1.nParams = 1;
options_cv1.loss = 'sq';
model_cv1 = ml_general_CV(Xtrain, ytrain, options_cv1);
yhat_cv1 = model_cv1.predict(model_cv1, Xtest);
testError_cv1 = mean(abs(yhat_cv1 - ytest));
fprintf('Averaged absolute test error with %s is: %.3f\n', ...
        model_cv1.name, testError_cv1);
fprintf('Best %s is: %.3f\n', options_cv1.paramNames, ...
        model_cv1.bestParams);

Averaged absolute test error with CV on:  basisOptions.sigma is: 0.029
Best basisOptions.sigma is: 2.500

usage of RBF kernelized L2 regression with CV on sigma and lambda (L2 regularizer)

options_cv2 = [];
options_cv2.subModel = @ml_regression_basis;
options_cv2.subOptions.subModel = @ml_regression_L2;
options_cv2.subOptions.basisFunc = @ml_kernel_rbf;
options_cv2.subOptions.subOptions.addBias = 1;
options_cv2.paramNames = {'basisOptions.sigma', 'lambdaL2'};
options_cv2.paramValues = {[0.5 1 1.5 2 2.5]', [0.5 1 1.5 2 2.5]'};
options_cv2.nParams = 2;
options_cv2.loss = 'sq';
model_cv2 = ml_general_CV(Xtrain, ytrain, options_cv2);
yhat_cv2 = model_cv2.predict(model_cv2, Xtest);
testError_cv2 = mean(abs(yhat_cv2 - ytest));
fprintf('Averaged absolute test error with %s is: %.3f\n', ...
        model_cv2.name, testError_cv2);
fprintf('Best %s is: %.3f\n', options_cv2.paramNames{1}, ...
        model_cv2.bestParams(1));
fprintf('Best %s is: %.3f\n', options_cv2.paramNames{2}, ...
        model_cv2.bestParams(2));

Averaged absolute test error with CV on: basisOptions.sigma & lambdaL2 is: 0.029
Best basisOptions.sigma is: 2.500
Best lambdaL2 is: 1.000

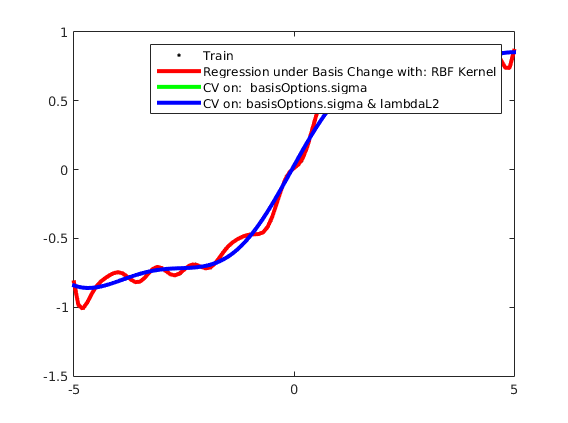

plotRegression1D(Xtrain, ytrain, model_kn, model_cv1, model_cv2);

Published with MATLAB® R2015a
