416 Distributed Systems: Assignment 2

Due: Jan 25th at 9PM

2016W2, Winter 2017

In this assignment you will build a small peer-to-peer resource distribution system. You will also get to practice remote procedure calls in Go.

High-level description

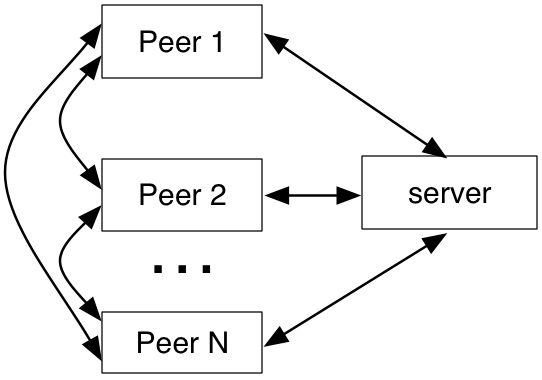

The system has two kinds of nodes: a peer (that you will implement) and a server (that we will implement). An instance of the system will run some number of copies of your peer code, either as several processes on a single machine, or as processes across several machines. The peers need to collectively coordinate their interaction with the server in order to (1) initiate a session, (2) retrieve a finite set of resources, and (3) place these resources on the right peers. Once this is completed, each peer will print out the resources it is hosting and exit. The peer-to-server protocol is well specified (below). The peer-to-peer protocol is unspecified and is up to you to design and implement.

The details

The server listens to connections from peers and expects two kinds of RPC invocations: InitSession and GetResource. The InitSession initiates a session and returns a token called sessionID that must be used in the call to GetResource. The GetResource call returns a string, that we term a resource, and also returns the peer that must host the resource. Your peer code must appropriately route the resource to the right peer, which will then store it. More precisely, these RPCs look like this:

• sessionID ← InitSession(numPeers)
• Initiates a new session. Takes the number of peers as a positive integer argument and returns a positive integer sessionID to the caller.
• [resource, peerID, numRemaining] ← GetResource(sessionID)
• Returns a resource for a previously initialized session with ID sessionID. Returns three items:
  • A resource; an arbitrary string.
  • An ID of a peer that must host the resource. The peer ID is an integer between 1 and numPeers, inclusive.
  • Number of remaining resources (i.e., resources available through further invocations of GetResource). This number will be greater or equal to 0.

In interacting with the server the peer group that executes your peer code must satisfy three constraints:

1. Constraint1: The sessionID RPC must be invoked exactly once and must have the correct number of peers as an argument.
2. Constraint2: Two consecutive invocations of the GetResource RPC cannot come from the same peer.
3. Constraint3: The GetResource RPC must be invoked exactly (1 + numR) number of times, where numR is the numRemaining value received from the first call to GetResource (i.e., once server returns a numRemaining value of 0, the client should make no more calls to the server).

In addition, your peer group must satisfy three requirements:

• Resource distribution requirement: for every pair [resource, peerID] returned by a call to GetResource, the peer with ID peerID must eventually store resource.
• Resource printing requirement: each resource stored by a peer must be printed to its stdout and followed by a newline.
• Termination requirement: after all of the resources have been retrieved from the server and have been printed by the peers that are supposed to store them, all peers must terminate.

You have two important degrees of design freedom in this assignment: the protocol between peers, and the algorithm by which you satisfy the above constraints and requirements. For example, your peer protocol can build on UDP/TCP, on RPC, or another abstraction.

You will test and debug your solution against a server that we will give to you. Your peer must be run with four arguments: number of peers in the group, the local peer ID, a file with IP:port pairs for peers to use when contacting other peers, and the RPC TCP IP:port to use when contacting the server.

Assumptions you can make

• The server is reachable, does not fail/restart, and does not misbehave.
• No network failures and no peer failures.
• Each peer has a unique peer ID (specified on the command line).
• All peer processes will be invoked within 2 seconds of each other.
• There are no ordering constraints on when peers terminate relative to one another, or when peers print the resources, including the peer-local ordering of the printed resources.

Assumptions you cannot make

• Nodes have synchronized clocks (e.g., running on the same physical host).
• Perfectly reliable network (e.g., if you use UDP for your peer protocol, expect loss and reordering)

Implementation requirements

• The client code must be runnable on CS ugrad machines and be compatible with Go version 1.6.3
• Your solution can only use standard library Go packages.
• Your solution code must be Gofmt'd using gofmt.

Solution spec

Write a single go program called peer.go that acts as a peer in the protocol described above. Your program must implement the following command line usage:

• [numPeers] : number of peers in the group, an integer equal to or higher than 1.
• [peerID] : the identity of this peer, an integer between 1 and numPeers, inclusive.
• [peersFile] : a file with numPeers lines. Each line in this file has a unique IP:port address of a peer. The IP:port on line i should be used by peer with peerID i.
• [server ip:port] : the TCP address on which the server receives new client RPC connections

Starter code

Download the starter code. Please carefully read and follow the RPC data structure comments at top of file.

Solution code

Download the solution.

Testing server

Download the server binary. The server binary should be run on a CS ugrad server with one arguments, the TCP IP:port on which to listen for incoming RPC connections from peers.

Rough grading rubric

• 20%: Solution satisfies constraint1.
• 30%: Solution satisfies constraint2.
• 10%: Solution satisfies constraint3.
• 25%: Solution satisfies the resource distribution requirement.
• 10%: Solution satisfies the resource printing requirement.
• 5%: Solution satisfies the termination requirement.

Make sure to follow the course collaboration policy and refer to the assignments instructions that detail how to submit your solution.
