RelEx: Visualization for Actively Changing Overlay Network Specifications

Michael Sedlmair, Annika Frank, Tamara Munzner, Andreas Butz


Abstract | Paper | Video | Talk | Supplemental Material | HighRes Screenshot

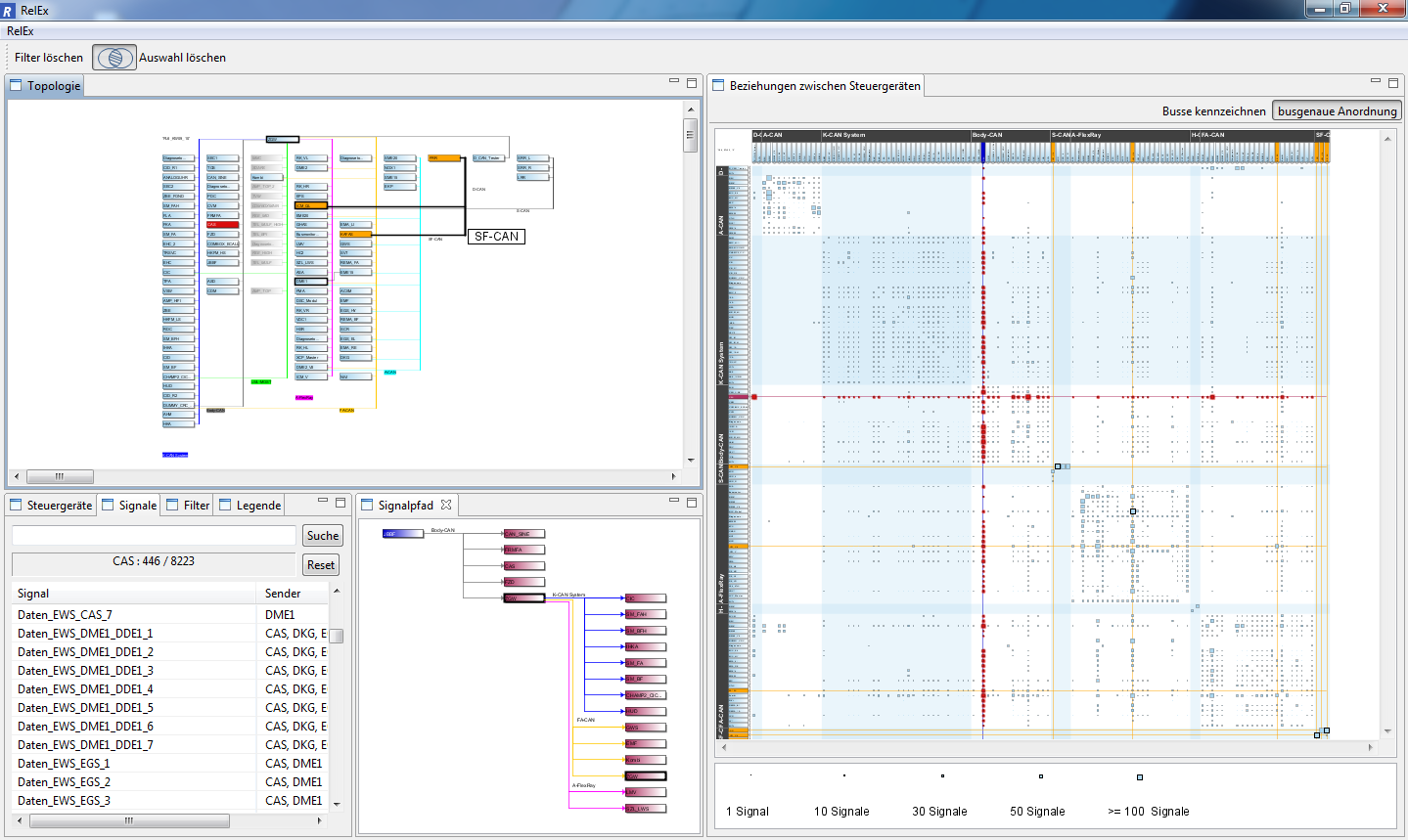

RelEx with the four main views opened: Topology View (upper left), List View with the Signal tab active (lower left), SignalPath View (lower middle), and the Matrix View (right side).

Abstract

We present a network visualization design study focused on supporting automotive engineers who need to specify and optimize traffic patterns for in-car communication networks. The task and data abstractions that we derived support actively making changes to an overlay network, where logical communication specifications must be mapped to an underlying physical network network. These abstractions are very different from the dominant use case in visual network analysis, namely identifying clusters and central nodes, that stems from the domain of social network analysis. Our visualization tool RelEx was created and iteratively refined through a full user-centered design process that included a full problem characterization phase before tool design began, paper prototyping, iterative refinement in close collaboration with expert users for formative evaluation, deployment in the field with real analysts using their own data, usability testing with non-expert users, and summative evaluation at the end of the deployment. In the summative post-deployment study, which entailed domain experts using the tool over several weeks in their daily practice, we documented many examples where the use of RelEx simplified or sped up their work compared to previous practices.

Paper

RelEx: Visualization for Actively Changing Overlay Network Specifications
IEEE Trans. Visualization and Computer Graphics (Proc. InfoVis), 18(12): 2729-2738, 2012.

Video

The video explains RelEx's interface components and provides usage examples:
MP4 video (13.3 MB, with audio, tested on QuickTime 10.0)

Talk

Talk given at InfoVis 2012 in Seattle, WA, USA:
PDF (14.7 MB)

Supplemental Material

The supplemental material provides additional screenshots of the tool RelEx, meant for further clarification of visual encodings and linked-view interaction:
PDF (7.0 MB)

HighRes Screenshot
