**NOTE: CPSC 545 students are only required to solve problems
1,2, and 4;
CPSC 445 students are expected to solve all problems.**

Read Section 7.3 "Making a tree from pairwise distances"
in Durbin *et al.*
(available from the box in the ICICS/CS Reading Room)
and answer the following questions:

**(a)** Show all steps of the UPGMA algorithm
as applied to the following five
sequences, where the distance between two sequences is defined as the number of
base positions in which they differ.
[3 marks]

`CGGGGCUGAUGAGGC``CGGAAGGCUGAAGGC``AUGCUUGAUGGCAGA``CUAUGCGCGAUUGCA``CCUGCGUUGUUUACC`

**(b)** Explain the Jukes-Cantor distance and discuss why may it be more
appropriate than the simple distance measure used in part (a)?
(<= 50 words, in your own words).
[2 marks]

*Note: We are not asking you to compute Jukes-Cantor distances
for the sequences from part (a).*

**(c)** Describe the role of "arithmetic averaging" in UPGMA.
(<= 50 words, in your own words)
[2 marks]

**(d)** Prove that Equation (7.2) gives the correct distances d_{kl}
between a merged cluster C_{k} = C_{i} + C_{j}
(*'+'* denotes set union) and every other cluster C_{l} according to
the general definition of distance between clusters as given in Equation (7.1).
[3 marks]

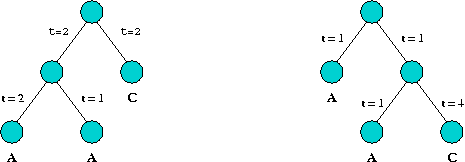

**(a)** Calculate the likelihood of the following two (rooted) trees,
assuming the Jukes-Cantor model with parameter *m = 1/2*,
and uniform distribution of bases at the root.
What do you notice?
[4 marks]

**(b)** Describe in your own words how a stochastic local search
approach over candidate trees for the maximum likelihood approach
could work. (<= 100 words)
[4 marks]

Consider the following partial sequences from E.Coli clone vectors in FASTA format. (Source: http://www.cf.ac.uk/biosi/staff/ehrmann/tools/dnasequences.htm)

**>pBR322**

`
TTCTCATGTTTGACAGCTTATCATCGATAAGCTTTAATGCGGTAGTTTAT
CACAGTTAAATTGCTAACGCAGTCAGGCACCGTGTATGAAATCTAACAAT
GCGCTCATCGTCATCCTCGGCACCGTCACCCTGGATGCTGTAGGCATAGG
CTTGGTTATGCCGGTACTGCCGGGCCTCTTGCGGGATATCGTCCATTCCG
`

cacagttaaattgctaacgcagtcaggcaccgtgtatgaaatctaacaat

gcgctcatcgtcatcctcggcaccgtcaccctggatgctgtaggcatagg

cttggttatgccggtactgccgggcctcttgcgggatatcgtccattccg

CACAGTTAAATTGCTAACGCAGTCAGGCACCGTGTATGAAATCTAACAAT

GCGCTCATCGTCATCCTCGGCACCGTCACCCTGGATGCTGTAGGCATAGG

CTTGGTTATGCCGGTACTGCCGGGCCTCTTGCGGGATATCGTCCATTCCG

GATAAAACTTGTGCTTATTTTTCTTTACGGTCTTTAAAAAGGCCGTAATA

TCCAGCTGAACGGTCTGGTTATAGGTACATTGAGCAACTGACTGAAATGC

CTCAAAATGTTCTTTACGATGCCATTGGGATATATCAACGGTGGTATATC

ACAGGAGGGACAGCTGATAGAAACAGAAGCCACTGGAGCACCTCAAAAAC

ACCATCATACACTAAATCACTAAGTTGGCAGCATCACCCGACGCACTTTG

CGCCGAATAAATACCTGTGACGGAAGATCACTTCGCAGAATAAATAAATC

ggaagctgtggtatggctgtgcaggtcgtaaatcactgcataattcgtgt

cgctcaaggcgcactcccgttctggataatgttttttgcgccgacatcat

aacggttctggcaaatattctgaaatgagctgttgacaattaatcatcgg

**(a)** Use ** ClustalW**
(http://www.ch.embnet.org/software/ClustalW.html)
to obtain a multiple sequence alignment of these sequences,
using default parameters. Show the result in Phylip format.
[2 marks]

**(b)** Use ** Phylip**
(http://www.cbr.nrc.ca/cgi-bin/WebPhylip/index.html)
to calculate evolutionary trees from the alignment from part (a).
Report the two trees you obtain from parsimony and maximum likelihood runs
of Phylip and briefly comment on the differences between these (if any).
[3 marks]

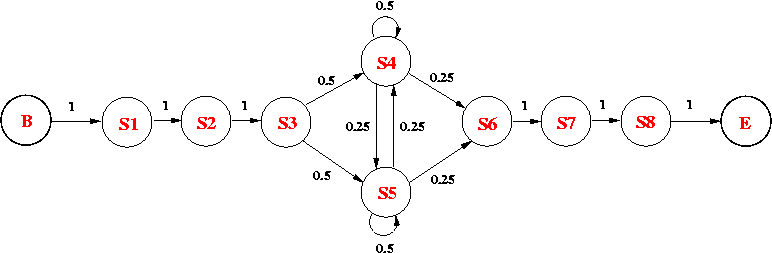

Consider the following HMM, which models an intronic sequence with GC-rich regions. The model consists of 8 states:

- the begin (B) and end (E) states corresponding to the 5' and 3' ends, which are silent states (don't emit symbols);
- 3 states (S1, S2, S3) following (B)
- 3 states (S6, S7, S8) preceding (E)
- two intermediary states (S4, S5).

The emission probabilities for the non-silent states are as follows:

Base |
S1 |
S2 |
S3 |
S4 |
S5 |
S6 |
S7 |
S8 |

A |
0 | 0 | 0.35 | 0.60 | 0.50 | 0.75 | 0 | 1 |

C |
0 | 0 | 0.37 | 0.13 | 0.03 | 0.08 | 1 | 0 |

G |
1 | 0 | 0.18 | 0.14 | 0.44 | 0.10 | 0 | 0 |

T |
0 | 1 | 0.10 | 0.13 | 0.03 | 0.07 | 0 | 0 |

Please answer the following questions and show your work:

**(a)** What is the probability of observing GTAATACA
along the state path p = B-S1-S2-S3-S5-S4-S6-S7-S8-E?
[1 mark ]

**(b)** What is the probability of seeing GTCGCGCA, given the current HMM?
(Show the steps of your calculation.)
[3 marks]

**(c)** Assume an expert biologist has given
you the following profile matrices for the 5' and 3'
ends of introns:

5' |
+1 |
+2 |
+3 |
+4 |
+5 |

A |
0 | 0 | 0.35 | 0.08 | 0.15 |

C |
0 | 0 | 0.37 | 0.04 | 0.19 |

G |
1 | 0 | 0.18 | 0.81 | 0.20 |

T |
0 | 1 | 0.10 | 0.07 | 0.46 |

3' |
-5 |
-4 |
-3 |
-2 |
-1 |

A |
0.75 | 0.26 | 0.06 | 0 | 1 |

C |
0.08 | 0.30 | 0.05 | 1 | 0 |

G |
0.10 | 0.31 | 0.84 | 0 | 0 |

T |
0.07 | 0.13 | 0.05 | 0 | 0 |

Extend the given HMM model based on this information. [2 marks]

**Hint:*** If you are uncertain how to solve this problem, consult
Chapter 7 of "Bioinformatics - The Machine Learning Approach" by Baldi
and Brunak (available from the Reading Room).*

Please answer the following questions:

**(a)** What is the difference between a motif and a site (i.e., an
occurrence of the motif)? How is a motif defined formally?
[2 marks]

**(b)** Give the definition of relative entropy between two distributions.
[1 mark]

**(c)** What is the smallest (absolute) value for the relative entropy of
a distribution *P* w.r.t. another distribution *Q*?
For which *P* and *Q* does this
value occur?
[2 marks]

**(d)** What is the largest value for the relative entropy of
a distribution *P* w.r.t. another distribution *Q*?
For which *P* and *Q* does this
value occur?
[2 marks]

**(e)** How is relative entropy used to evaluate
candidate motifs? (<= 50 words, in your own words)
[2 marks]

**(f)** Can the Gibbs Sampling Algorithm by Lawrence *et al.* find the
maximum relative entropy motif for any given instance of the Relative Entropy
Site Selection Problem with some probability > 0 in at most *k* iterations,
where *k* is the number of sequences?
[2 marks]

- The assignment has to be handed in on the date it is due before 16:00. To ensure fairness, extensions will only be granted under exceptional circumstances (i.e., medical reasons). Handin in the form of a PDF file via e-mail to Holger and Baharak is preferred. Otherwise, hand in your assignment at the CS department office or slide it underneath Holger's office door.
- This assignment should take you about 4-5 hours of work, if you have good knowledge of the topics covered and did all reading assignments. However, don't wait until the last minute relying on this estimate - it might not apply to you (or anyone at all), you might need additional time to consult the literature, ...
- While cooperation between students - especially between CS and non-CS students - is encouraged, each student is expected to work out the actual solutions to the problems individually and hand in their own assignment. In other words: help each other, but do not copy solutions.
- Feel always free to contact Holger, Baharak or Sanja if you feel you need further help than can be provided by your fellow students.
